i.MX6Q android Linux Single Board Computer ARM Cortex-A9 Quad Core On-board eMMC / HDMI / LVDS /SATA / Mini PCIE

FOB Reference Price:Get Latest Price
$149.00 - $170.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
D/C:
CPU Module marked as i.MX6Q_Core_20150309
Package:
CPU module soldered on carrier board
Model Number:
OKMX6Q
Type:
programmable IC
Brand Name:
Original Brand, Forlinx
Place of Origin:
Hebei, China
CPU:
Freescale i.MX6Quad
Architecture:
ARM Cortex-A9
Frequency:
1GHz
RAM:
1G DDR3 (2G optional)
Flash:
8G eMMC (4G optional)
OS:
Android4.4/Linux3.2
Input Voltage:
DC 5V 3A
On-board Interface:
HDMI, LVDS, SATA, mini PCIE, etc.
Dual Display:
supported
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
one piece/box
Port
Tianjin/Beijing/Shenzhen/HK
Overview

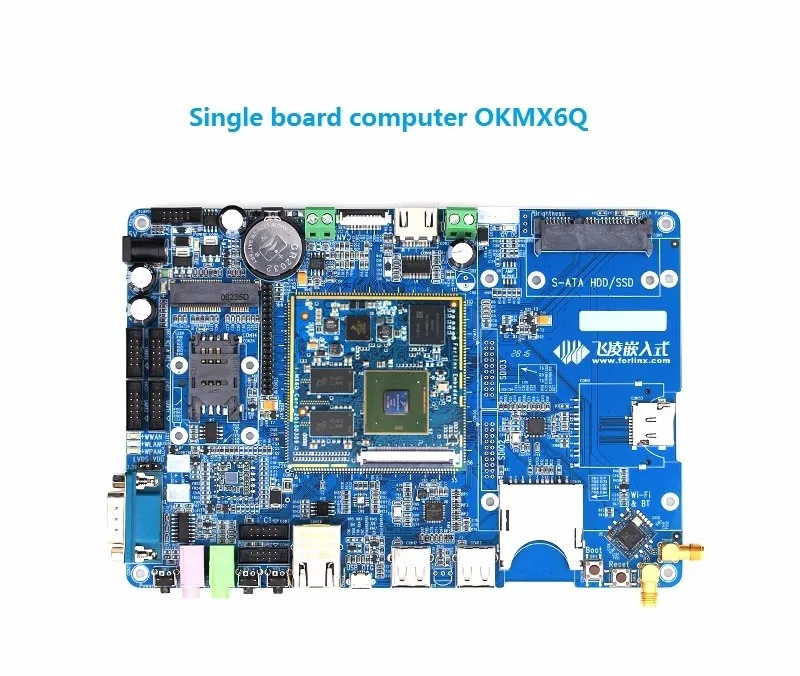

 i.MX6Q Android/Linux Single Board Computer ARM Cortex-A9 Quad Core On-board eMMC / HDMI / LVDS /SATA / Mini PCIE

The single board computer OKMX6Q is an ARM Cortex-A9 single board computer designed based on Freescale i.MX6 quad core processor. It is with abundant hardware resources on its carrier board. Ready-to-use on-board interfaces, such as 5M digital camera, standard dual-channel 8-bit LVDS and HDMI-1.4 are preferable for media performace; the SDXC standard SD card interface and SATA hard disk interface make it easier for large volume TB storage; RS232, CAN, RS485 interfaces are all designed with protection components to face with industrial environment; improved Li-barttery manage circuit, supporting of IrDA, stereo audio amplifier, on-board 3-axis acceleration sensor which are preferable for portable devices. Both carrier board and CPU module are with industrial and commercial grade optional to users, the industrial grade one is with temp range of -40℃ to +85℃.

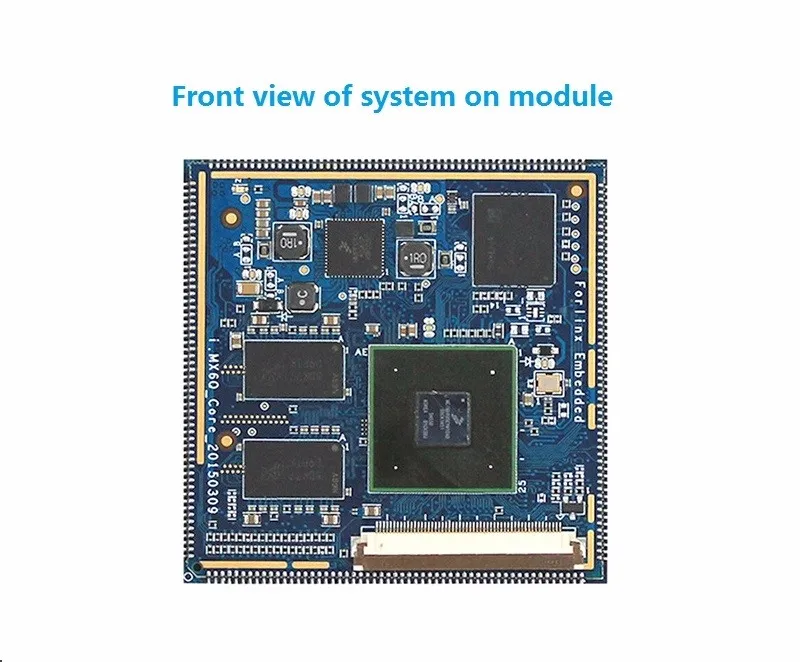

the CPU module FETMX6Q is integrated with minimum system

SoM with minimum system and with LCD interface, which is very convenient for usres to do incoming quality control and aging by running the system just with connection of a 4.2V power input but no need support of the carrier board.

Product Description
i.MX6 CPU Module
CPU
Freescal i.MX6Quad
IIC
3-ch
Architecture
ARM Cortex-A9
SPI
2-ch
Main Frequency
1GHz
CAN
2-ch
RAM
1GB DDR3 (2G optional)
USB Host
1-ch, USB2.0
Flash
8GB eMMC, (4G optional)
USB Device
1-ch, USB2.0
Input Voltage
4.2V
SD/MMC/SDIO
2-ch, SD/MMC
2D/3D
supported
Ethernet
1-ch, Gigabit Ethernet
GPU
IIS interface
Mini-PCIE
1-ch
PMU
MMPF0100NPEP
UART/IrDA
5-ch, (1 debug port)
Dimensions
60mm*60mm
EINT/GPIO
supported
Connection Type
CPU module soldered on carrier board
Video Codec
hardware codec
OS
Android4.4/Linux3.0.35/
LinuxQT4.8.5
HDMI
1-ch
LCD
RGB888 (2-ch LVDS with 8-bit)
Camera
1-ch, 5MP parallel camera
Audio
IIS
SATA
1-ch, SATA-II
OKMX6Q Carrier Board
Audio
3-ch (1-ch phone, 1-ch MIC, 1-ch speaker)
IrDA
1-ch, empty soldering
IIC
2-ch
User Key
2-ch
SPI
1-ch
Boot
1-ch
CAN
2-ch
Sleeping Awake
1-ch
Camera
1-ch, 5MP parallel camera OV5640
Reset
1-ch
SDIO
2-ch
PWM
2-ch
SD/MMC
2-ch
GPIO
supported
USB Host
2-ch, USB 2.0
EINT
supported
USB Device
1-ch, USB 2.0
LVDS
2-ch
Ethernet
1-ch, 10M/100M/1000M adaptive
HDMI
1-ch
Power Jack
1x mandatory power,
1x auxiliary power
SATA
1-ch
Mini-PCIE
1-ch
WIFI&BT
1-ch
UART
4-ch (1 debug port, 2-ch 3-wire serial port, 1-ch 5-wire serial port)
RTC
Supported
Android 4.4
U-boot Version
U-boot 2009.08-dirty
Kernel Version
Linux-3.0.35









Drivers
Ethernet port driver (100M/1000M)
RTC driver
LED driver
Audio (IIS interface) driver
LCD driver
SPI driver
USB interface driver
Serial port driver (3 serial ports)
PWM driver (backlight)
User key driver
SATA2 driver
Bluetooth driver
eMMC driver
Watchdog driver
Ext4 file system
WIFI driver
SD card driver
RS485 driver
LCD framebuffer
CAN driver
Capacitive touch driver
Linux Console / Linux QT4.8.5
Cross-compiler
arm-fsl-linux-gnueabi-gcc-4.6.2
ARMv7 architecture, supports hard floating-point calculation



OS Image Flashing Mode
USB download flashing
Flash OS image to eMMC via USB
Single/multiple files automatic flashing
Support system files flashing in EXT4 format
Flash tool: MFG toolds,
support Windows XP/Vista/ Windows 7 PC


Uboot
Boot mode selection (eMMC)
RAM
Uboot boot-up LOGO
Linux Kernel
Linux3.0.35
support file system form in EXT4/NFS/FAT32/NTFS, etc.









Drivers
eMMC driver (4G/8G)
LCD back light driver, adjustable up to 255-grade
Watchdog driver
LCD driver (standard 7'' capacitive LCD)
RTC driver
USB host driver
I/O driver
USB device driver
User key driver (4 keys)
TF/SD/MMC card driver: up to 32GB
SPI driver
Serial interface driver (4)
IIC driver
WM8962 audio driver
Camera driver OV5640
Ethernet driver (AR8031 10M/100M/1000M)
PWM control driver
3G driver
Capacitive touch driver
USB to serial driver
LVDS1/2-ch (1-ch support 1366*768 resolution, 1-ch support 1920*1080 resolution)
SATA hard disk driver












APPs
WIFI config tool
USB camera test
Telnet
Recording and playing test
RTC test
IIC test
SPI to CAM MCP2515
GPU test
Flexcan
IPU test
IP/MAC address modification
VPU test
Sqlite database
Speaker test
Sleep/awakening
RGB screen back light adjustment
TTL to RS232
1080P video and mp3 files playing test
RS485 test
Watchdog test
Automatic mount and disconnect MMC/TF/SD card, U-disk and SATA2 ext4 hard disk
Recording/playing test
Access to internet via GPRS
FTP network
GPS test
Boa web sever
Access to internet via 3G
SPI test

Click here to link to details about is SoM (system on module) FETMX6Q

Application:

Automotive infotainment, digital signage, HMI, in-flight entertainment, intelligent industrial control system, IP phones, IPTV, portable medical, tablets.

Plenary product information for reference

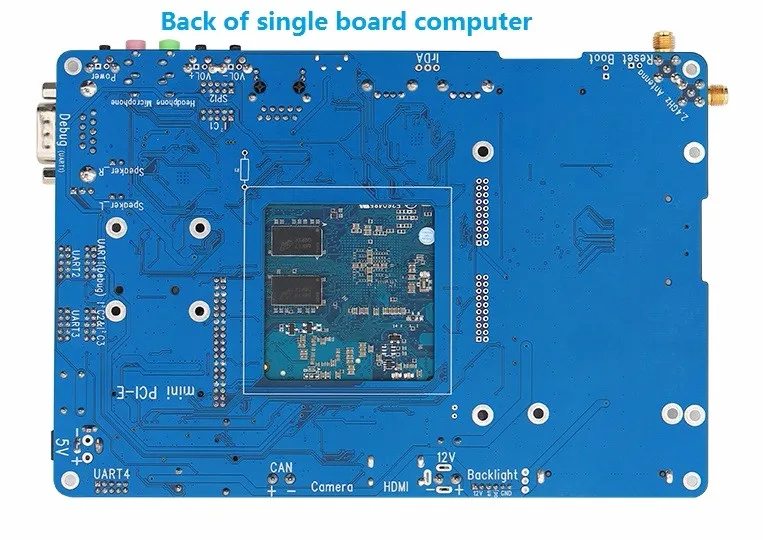

Detailed Images

Structure dimensions: 130mm x 190mm

SOM is with hole of 49mm x 51mm

Artcraft: thickness: 1.6mm, 4-layer PCB

Power input: DC 5V(mandatory)+DC12V(auxiliary, only for 3.5'' hard disk and LVDS display)

Packing & Delivery

Generally the board could be packed as one pc a box (24*19*10cm), the parcel(s) could be sent out by express/air within 3~5 working days after receipt of full payment.

Application

Automotive infotainment, digital signage, HMI, in-flight entertainment, intelligent industrial control system, IP phones, IPTV, portable medical, tablets.
