Product Description

Samsung S5P4418 System on Module with Quad Core ARM Cortex-A9 CPU Supports Android with 1920x1080 LVDS & MIPI output

SoM/CPU module FET4418 is a high cost effective low power embedded system on module. It is an RISC(32-bit) SoC-based starter kit featuring Samsung S5P4418 belongs to Cortex-A9 with 28NMHKMG low power item. Its CPU or processor is with main frequency of 1.4GHz. It has a powerful multi-media performance supporting 1080P hardware video codec and 3D graphical accelerator. RGB, HDMI, MIPI and LVDS display types are all available, what's more, DVP and MIPI cameras are both well supported. The CPU module is with 1GB DDR3, 8GB eMMC, dimensions of 60*45mm, it's connected to the carrier board by 4 ultra thin connectors with hight only 1.5mm to draw out mostly pins (320 pins). OS Android5.1, Linux 3.4.39 and QT4.8.6 are well supported.

FET4418 is an popular system on module item since it's launched on market because of its excellent product performance and cost efficient performance.
                                    Airy tiny appearance, make your design free

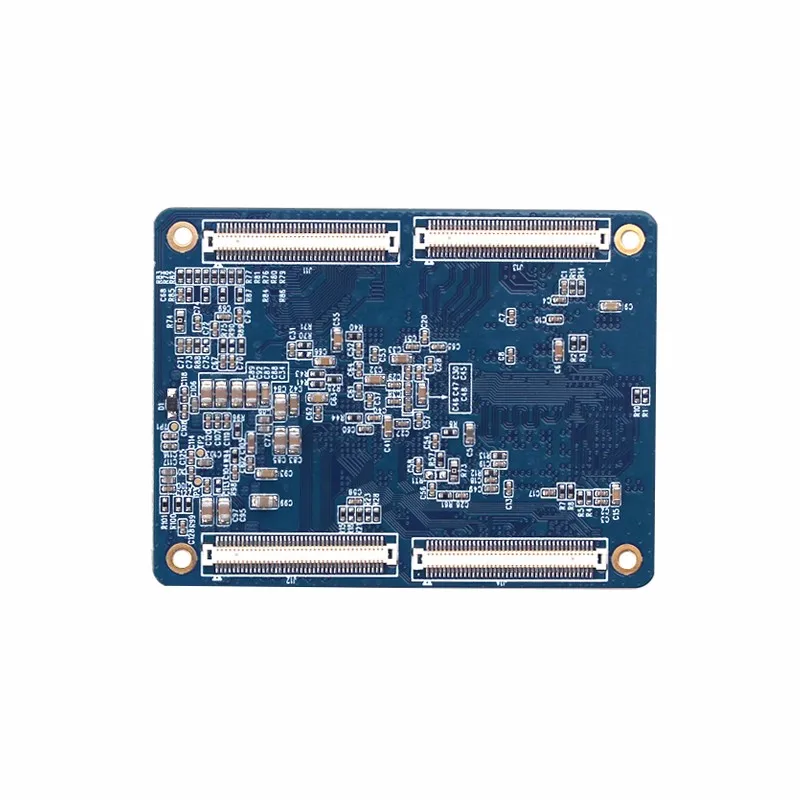

Tiny SoM size: 60mm * 45mm and 8-layer ENIG PCB. Four connectors with each only 1.5mm high, for board-to-board connection between SoM and carrier board.
Unique design to avoid misplugging, and SoM designed with 4 positioning holes to allow it to run stably in viberating environment.

Rich BUS types, makes it expandable

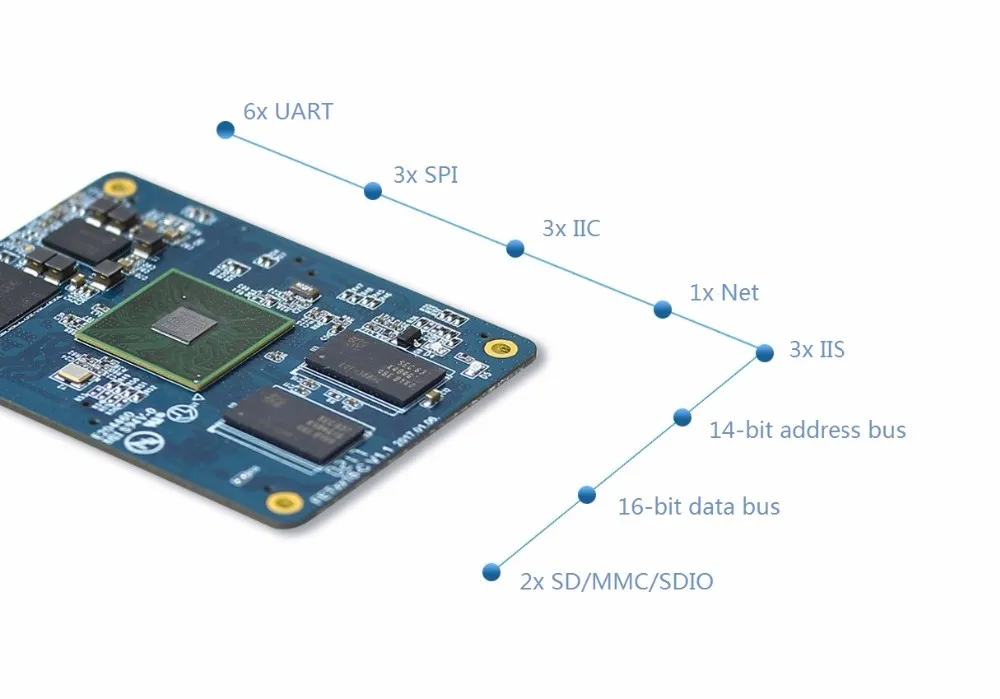

The SoM is with pins 320 in total with all functional ports drawn out from CPU, supporting with 6x UART, 3z IIC, 3x SPI, 2x SD/MMC/SDIO, 3x IIS, 1x Gigabit Ethernet, 16-bit data bus and 14-bit address bus

Perfect compatible with S5P4418 and S5P6818 to let switching easy

Two CPUs share one SoM design since S5P4418 and S5P6818 pins are completely compatible, users could upgrade S5P4418 to S5P6818 on a same carrier board without any change.

Powerful multi-media peformance to make displaying different
Supported with 3D graphical processor and video codec capability up to 1080P
Different display types (RGB, LVDS, MIPI, HDMI, etc.) are all available, with resolution up to 2048*1280

Excellent Li-battery power management system

The SoM FET4418 is with PUM chip for Li-battery power management which ready-to-use for users.

Dynamic frequency modulation to lower your product power consumption.

OS supporting

Application

Hardware Features

System on Module (SoM) FET4418 Features
CPU
Samsung S5P4418XCO-LA40
Architecture
ARM Cortex- A9
Main Frequency
1.4GHz
Core
Quad-core
RAM
1GB DDR3
Memory (Flash)
8G eMMC
Dimensions
60*45mm
Packing Type
board-to-board connector
PMU
NXE2000
Working Voltage
5V input
Working Temp
0~+70℃
Working Humidity
10%~90% none condensing
OS
Android 5.1.1, Linux 3.4.39, QT4.8.6
System on Module (SoM) FET4418 Software Parameters
Function
QTY
Spec.




Display
LCD
1
RGB 888, resolution up to 2048 x 1280
LVDS
1
both JEIDA and VESA output modes are supported, 4x data channel,
1x clock channel, resolution up to 2048 x 1280
HDMI
1
HDMI1.4, resolution up to 1080 x 1920
MIPI_DSI
1
MIPI DSI SPEC V1.01r11, up to 4 data channels with resolution up to 1920 x 1200

Camera
MPEG
2
8-bit parallel interface, up to 5-Megapixel
MIPI_CSI
1
D-PHY spec V1.00, up to 5-Megapixel
SD/MMC/SDIO
2
up to 3-ch supported by CPU, 2x SD/MMC drawn out by SoM, eMMC not drawn out
USB Host
1
USB 2.0 Host (up to 480Mbps), with HS USB PHY
USB OTG
1
USB 2.0 OTG (up to 480Mbps), with HS USB PHY
UART
6
each up to 5.0 Mbps
IIC
3
100kbit/s and 400kbit/s
IIS
3
support up to 3x IIS
SPI
3
support up to 3x SPI
Ethernet / LAN
1
10M/100M/1000M
PWM
4
4-ch
SPDIF
1
supported
ADC
7
12-bit resolution, input frequency up to 100KHz, power input 0-1.8V
EBI
1
data bus width up to 16-bit, address bus up to 14-bit
Android 5.1.1
Cross-compiler
arm-eabi-gcc-4.8, OpenJDK 7.0
OS Image Flashing
flash OS image to eMMC via SD card
U-boot
boot mode selection (eMMC)
Kernel Version
Linux3.4.39











Driver
 eMMC
UART/RS232 serial port driver
SD card
RS485
LVDS display
ADC
LCD
accelerator sensor
MIPI display
IrDA
HDMI display
RTC
LCD/MIPI/LVDS capacitive touching
IO
PWM
LED
LCD/MIPI/LVDS backlight driver, 255-class adjustable
user key
parallel camera OV5640
IIC
MIPI camera OV5645
SPI
Gigabit Ethernet
USB host driver, support mouse & keypad
4G
USB device
BT
WM8960 audio
WIFI
sleeping mode waking up
Linux Console
Cross-compiler
arm-cortex_a9-eabi-4.7-eglibc-2.18
OS Image Flashing
flash OS image to eMMC via SD card
flash OS image to eMMC by USB
U-boot
boot mode selection (eMMC)










Linux Kernel
version: Linux3.4.39
LCD back light driver, 255-class adjustable
file system forms: EXT/NFS/VFAT
LCD driver (7'')
eMMC
USB host, supports U-disk, USB hub, USB keyboard
watchdog
USB device
RTC
TF/SD/MMC card
IO
serial interface
user key
WM8960 audio
SPI
Ethernet
IIC
3G
camera OV5640
USB to serial port
PWM
MIPI 7'' display
capacitive touching
LVDS








Utility APP
WIFI configuration tool
SDIO WIFI
Telnet
user key
RTC
audio recording/playing
camera
ADC
IP/MAC address setting
FTP web tool
touch/mouse mode switching
lighttpd web sever
TTL to RS232
LCD back light
serial interface
video playing and mp3 file
audio recording and playing
watchdog
GPRS network
SPI
GPS
Linux QT 4.8.6
Cross-compiler
arm-cortex_a9-eabi-4.7-eglibc-2.18
OS image flashing
flash OS image to eMMC via SD card
flash OS image to eMMC via USB
U-boot
booting mode selction (eMMC)









Linux Kernel

Linux 3.4.39
LCD back light driver, 255-class adjustable
file system EXT/NFS/VFAT
LCD driver (7'')
eMMC
USB host driver, U-disk, USB hub, USB keyboard
watchdog
USB device
RTC
TF/SD/MMC card
IO
serial interface
user key
WM8960
SPI
Ethernet
IIC
3G
camera OV5640
USB to serial port
PWM
MIPI 7'' display
capactive touching
LVDS
Utility APP
GPS testing
SDIO WIFI testing
RTC testing
GPRS network testing
camera testing
audio recording/playing testing
IP/MAC address setting
ADC testing
touching/mouser mode switching
watchdog testing
TTL to RS232 testing
lighttpd web server
serial interface testing
LCD back light testing
audio recording/playing testing
video playing  and mp3 playing testing
