Cost-Effective ARM Cortex-A7 Linux Single Board Computer Based Freescale i.MX6UL Processor with 512M LvDDR3/ 4G eMMC

FOB Reference Price:Get Latest Price
$1.00 - $75.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
D/C:
i.MX6UL_20160926
Package:
CPU module board-to-board connect with carrier board
Model Number:
OKMX6UL-C1
Type:
ARM board
Brand Name:
Original Brand-Forlinx
Place of Origin:
Hebei, China (Mainland)
CPU:
Freescale i.MX6Ultra Lite
Power Input:
5V
RAM:
512M LvDDR3
Flash:
4G eMMC (8G eMMC optional)
carrier board PCB layer:
4-layer
on-board connector:
LCD/ESAM/PSAM/WIFI&BT

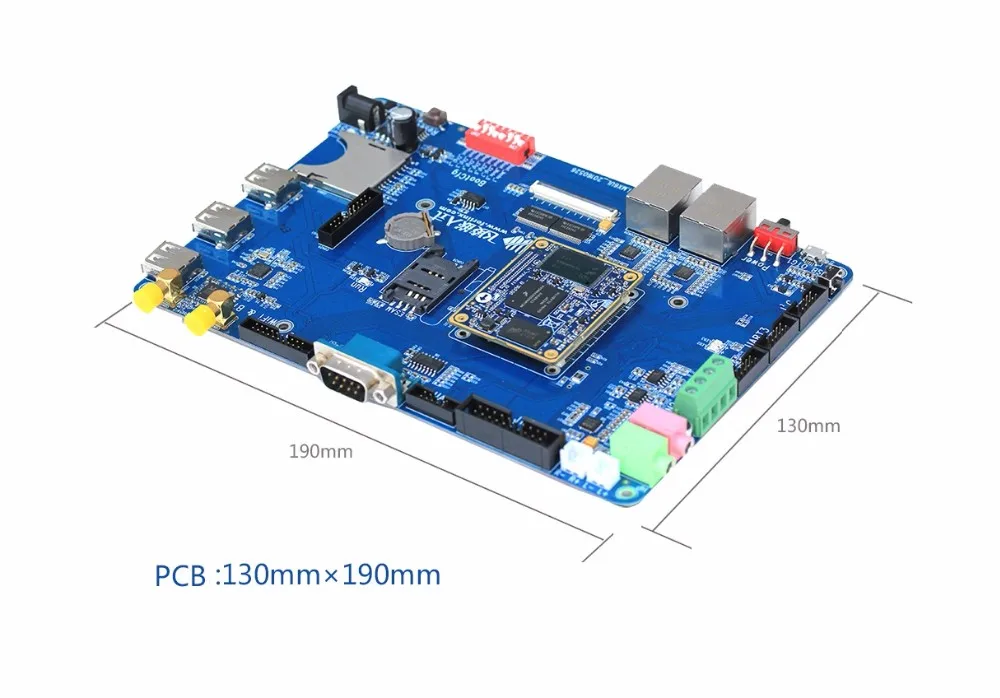

carrier board size:
190*130mm
OS:
Linux Yocto
Shipping by:
Express
LCD:
RGB24-bit
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1piece/box
Port
Hongkong/Shenzhen/Beijing/Tianjian
Lead Time :
within 5 working days after receipt of full payment
Product Description

Cost-Effective ARM Cortex-A7 Linux Single Board Computer Based Freescale i.MX6UL Processor with 512M LvDDR3/ 4G eMMC

OKMX6UL-C1 is an embedded Linux ARM technology based development board/single board computer featuring NXP(Freescale) i.MX6Ultra Lite ARM Cortex-A7 processor. It is a complete, ready-to-use embeddedsystem development board consisting a CPU module with based board, its CPU module is with compact size even smaller than NXP original SoM. OS Linux is well supported. This item aims at low power applications such as automotive telematics, IoT gatewaym HMI, home energy management systems, smart energy concentrators, intelligent industrial control systems, electronics POS device, smart appliances, financial payment systems, etc.

FETMX6UL-C1 CPU Module Features
CPU
Freescale i.MX6UL
CAN
2x CAN
Architecture
ARM Cortex-A7
USB
2x USB
Frequency
528MHz
SD/MMC/SDIO
2x SD/MMC/SDIO
RAM
512MB LvDDR3
Ethernet
2x Ethernet 10M/100M
Flash
4G eMMC
UART/IrDA
8x UART/IrDA
Working Voltage
5V input
EINT/GPIO
8x EINT/GPIO
GPU
PXP
Video Codec
Software video codec
Dimensions
50mm*40mm
EBI Bus
Supported
Connection Type
board-to-board connection
JTAG
Supported
OS
Linux 3.14.38
Camera
1x camera, 5.0MP
LCD
RGB 888
PWM
8x PWM
Audio
3x audio
ADC
10x ADC
IIC
4x IIC
ISO7816-3
2x
SPI
4x SPI
Keypad Port
8*8
QSPI
1x QSPI
SPDIF
1x SPDIF
OKMX6UL-C1 Carrier Board Features
Audio
1x phone, 1x MIC, 2x speaker
JTAG
Supported
IIC
2x IIC
ADC
4x ADC, for resistive touching
SPI
Supported
DIP Switch
8x DIP switch
CAN
2x CAN
Reset
1x reset
Camera
1x camera 5.0MP, OV650 is supported (preview and photo taking)
PWM
1x PWM. for LCD backlight
SD/MMC/SDIO
1x SD/MMC/SDIO
LCD
1x LCD
USB Host
3x USB 2.0 host
EINT
Supported
USB Device
1x USB micro 2.0
GPIO
Supported
Ethernet
2x Ethernet 10M/100M, RJ45
EBI
Supported
UART
3x UART
WIFI&BT
1x WIFI&BT
Power Input
DC 5V
GPS
GPS module with serial port
LED
4x LED
3G
USB 3G module is supported
RTC
Supported
4G
909SE module is supported
Detailed Images

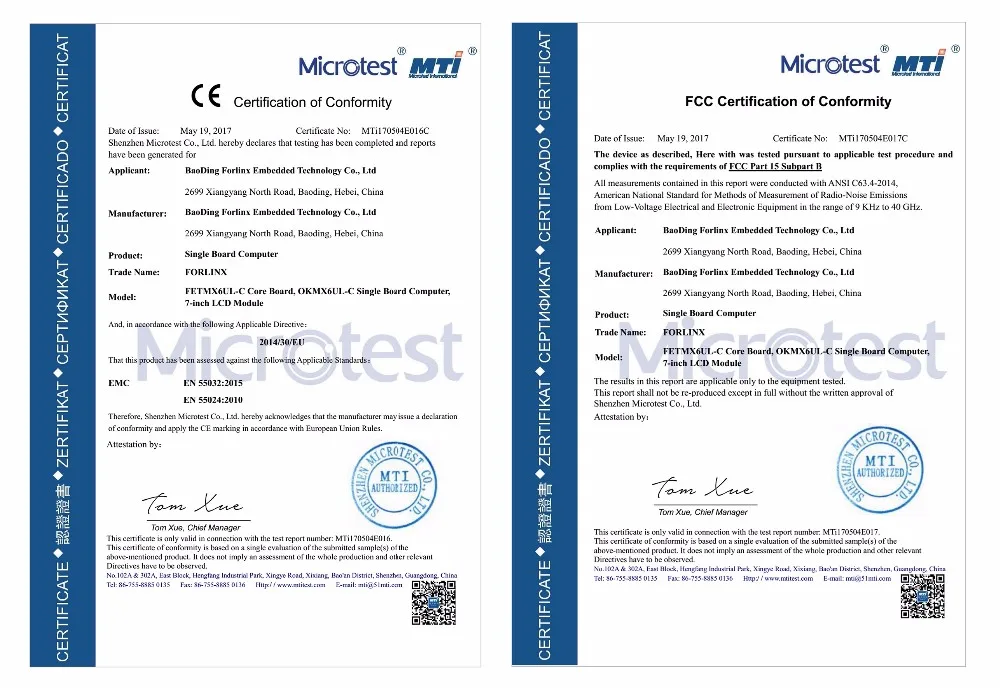

This board was certified by CE&FCC

Packing & Delivery
One piece a box, box dimensions: 24*19*10 cm
parcel could be sent out by express or air solution within 5 working days after receipt of full payment.
both freight prepaid and collected are optional
Maintenance Rules

• The Guarantee time of single board computer manufactured by Forlinx is 12 months. While we only provide 3 months for other add-on modules, such as: LCD, GPRS, GPS, etc.

• When there are breakdowns occurred, users could contact us for maintenance for products still during the guarantee time, so then the maintenance charge is for free.However, the users should be responsible for the shipping charge that ship to our company.

• For products which its guarantee time is expired, Forlinx could provide paid service.the detailed maintenance fees depends.In terms of products that has been seriously damaged,spare parts has been stopped for manufacture,and could not be fixed well according to the evaluation of Forlinx engineers,maintenance services could not be provided.

• Payment method could contact us for selection. We now accept T/T, PayPal, and West Union.

• For the repaired products, it will also have a 90-day guarantee time for the repaired parts. The time is calculated since the first day you receive the repaired ones.

• Please make sure to back up all datas in the board that are ready to ship to us for maintenance.Forlinx is not responsbile for the data loss caused during the maintenance period.

• Shipping charge for the repaired products should be shared by both sides.
