Low power i.MX6UL SoM Computer on Module ARM Cortex A7 with Linux Yocto

FOB Reference Price:Get Latest Price
$1.00 - $35.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
D/C:
the CPU module version: FETMX6ULC_V1.1
Package:
CPU module board-to-board connect with carrier board
Model Number:
FETMX6UL-C1
Type:
Core Board
Brand Name:
Original Brand-Forlinx
Place of Origin:
Hebei, China (Mainland)
CPU:
Freescale i.MX6Ultra Lite
RAM:
512M LvDDR3
Flash:
4G eMMC (8G optional)
CPU module size:
50*40mm
Power Input:
5V
OS:
Linux Yocto
LCD:
RGB 24-bit
Ethernet:
2-ch 10/100M Ethernet Port
Audio:
3-ch
Shipping by:
Express
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1piece/box
Port
Hongkong/Shenzhen/Beijing/Tianjian
Lead Time :
within 5 working days after receipt of full payment
Product Description

Low power i.MX6UL SoM Computer on Module ARM Cortex A7 with Linux Yocto

FETMX6UL-C1 is an ARM Cortex-A7 featuring System-on-Modules designed based on Freescale cost-effective power efficient high performance i.MX6Ultra Lite processor. it is with main frequency of 528MHz, 512M LvDDR3 and 4G eMMC. the SoM was designed with 80-pin ultra thin connectors to allow it could be connected to carrier board.

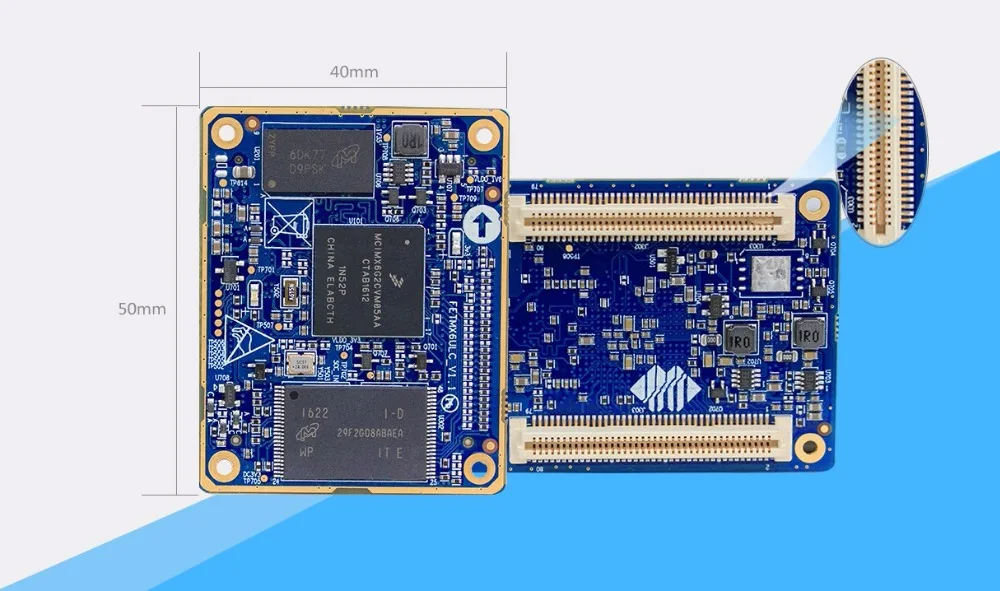

Compact size and flexible combination

System-on-Modules: 40mm*50mm, 6-layer EING PCB design, a couple of board-to-board connectors to avoid mispluging
Hardware
FETMX6UL-C1 System on Module Features
CPU
Freescale i.MX6UltraLite
CAN
2x CAN
Architecture
ARM Cortex A7
USB
2x USB
Frequency
528MHz
SD/MMC/SDIO
2x SD/MMC/SDIO
RAM
512M LvDDR
Ethernet
2x Ethernet 10M/100M
ROM
4G eMMC
UART/IrDA
8x UART/IrDA
Voltage
DC 5V
EINT/GPIO
supported
GPU
P x P
Video Coder
software codec
Size
50mm*40mm
EBI
supported
Connection Type
ultra-thin connector
JTAG
supported
OS
Linux 3.14.38
Camera
1x 5M parallel camera
LCD
RGB 888
PWM
8x PWM
Audio
3x audio
ADC
10x ADC
IIC
4x IIC
ISO7816-3
2x ISO7816-3
SPI
4x SPI
Keypad Port
8*8
QSOU
1x QSPI
SPDIF
1x SPDIF
Software
Detailed Images
Packing & Delivery

One piece a box, box dimensions: 24*19*10cm
parcel could be sent out by express or air solution within 5 working days after receipt of full payment.
both freight prepaid and collected are optional
