All-in-one S3C6410 Evaluation Development Board with Mini Size

FOB Reference Price:Get Latest Price
$1.00 - $100.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
D/C:
S3C6410 ARM11
Package:
All-in-one
Model Number:
OK6410-B
Type:
development board
Brand Name:
Forlinx
Place of Origin:
Hebei, China (Mainland)
Model:
OK6410-B
CPU:
Samsung S3C6410
Architecture:
ARM11
Main Frequency:
533MHz/667MHz
RAM:
256M Byte Mobile DDR
Flash:
1GByte SLC NAND Flash
Ethernet:
1-ch, 10/100M
Dimensions:
104.5mm*81.4mm
OS:

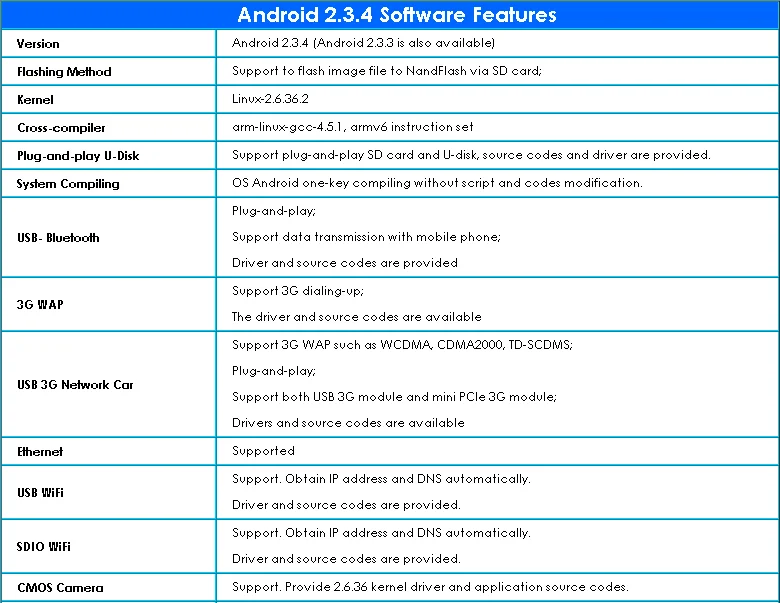

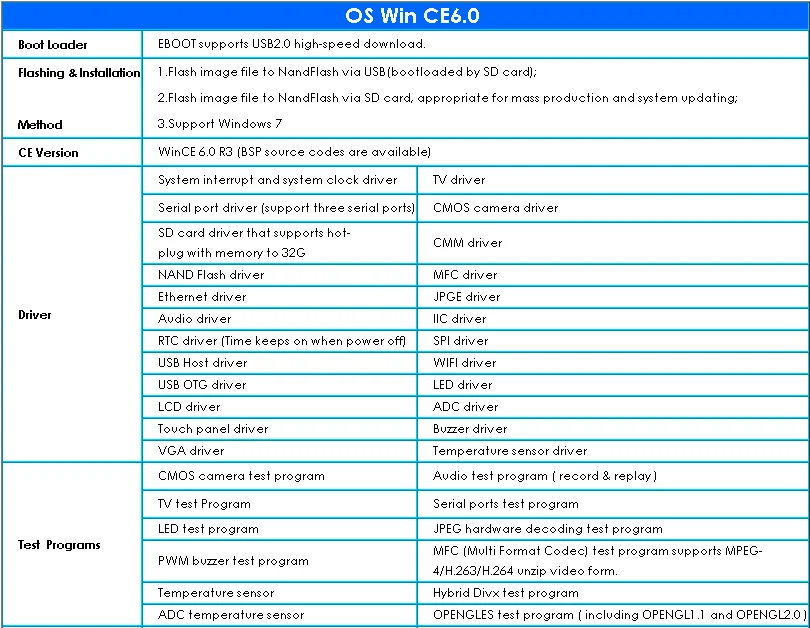

Android2.3.4/Win CE6.0/Linux 3.0.1
Soldering Type:
all-in-one board
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1 piece /carton, size of the carton: 240*190*100mm
Port
Beijing/Shenzhen/HongKong

All-in-one S3C6410 Evaluation Development Board with Mini Size



SAMSUNG S3C6410 main processor with built-in powerful hardware accelerator to save occupation by system and improved external storage interface, which satisfy customer’s demand for high-end communication. All-in-one card board, make it a compact size.



Hardware:





Base Board Features
 CPU Samsung S3C6410, ARM1176JZF-S Input Voltage 5V
 Architecture ARM11 2D/3D supported
 Main Frequency 533MHz/667MHz Dimensions 104.5mm*81.4mm
 RAM 256M Byte Mobile DDR Soldering Type all-in-one board
 Flash 1GByte SLC NAND Flash OS

 Android2.3.4/Win CE6.0/Linux 3.0.1

 CVBS 1-ch CVBS output (PAL/NTSC) RTC supported
 Audio 3-ch (1x Phone, 1x MIC, 1x Line in) WM8960 JTAG supported
 I2C 1-ch ADC 8-ch (4x resistive touch)
 SPI 2-ch User Key 8
 Camera 1-ch, ITU-RBT601/656 8-bite mode, ov3640, ov9650 DIP boot mode selection
 SD/MMC/SDIO 2-ch (1x SDIO WIFI, 1x SD card) Reset 1
 USB Host 1-ch USB1.1 PWM 1-ch for buzzer
 USB Device 1-ch USB 2.0 LCD 1-ch resistive LCD interface
 Ethernet 1-ch, 10/100M EINT 7-ch, multiplexed with GPIO
 Serial Port 4-ch (1x 5-wire RS232, 3x 3-wire TTL) GPIO 38
 IrDA 1 LVDS for 10.4'' resistive LCD
 Temp Sensor DS18B20 (optional module) Li-battery supported
 Power Adapter 5V 2A GPS supported
 LED 4-ch 3G AD3812



Software:



OS Linux

U-boot

U-Boot-1.1.6

Kernel Cersion

Linux-2.6.28/Linux-2.6.36.2/Linux-3.0.1

File System

YAFFS2/CRAMFS/NFS/UBIFS/NFS/FAT32, etc.

Cross-compiler

arm-linux-gcc-4.3.2

Flash Method

1.Flash image file to NandFlash via USB(bootloaded by SD card)
2.Flash image file to NandFlash via SD card, appropriate for mass production and system updating;
3.Support Windows 7 OS

Driver

Watchdog driver
RTC driver
4x LED driver
6x user key driver
4x serial port driver
Matrix keyboard driver
IR Receiver driver
Temperature sensor driver
PWM buzzer driver
SPI driver
ADC driver
CAN driver
RS485 driver
USB Host driver
USB Device driver
USB mouse and keyboard driver

Universal USB camera driver
USB to serial port driver
Nand Flash driver
SD card driver
CMOS camera driver
SD WiFi driver
USB WiFi driver
3G module, 3G NIC driver
Ethernet driver(DM9000)
CPU with touch panel controller driver
LCD driver
Audio driver(WM9714:ALSA)
TV-OUT driver
MFC driver
FrameBuffer driver

Busybox

busybox-1.13.3

Command line testing program

LED testing
ADC testing
key testing
Infrared testing
Temp sensor testing
PWM buzzer testing

CMOS camera teating
CAN testing
3G module, 3G NIC testing
TV-OUT testing
Multi-media codec testing

LCD

320*240,480*272,640*480,800*480,800*600,1024*768



Graphic System

Qtopia-2.2.0

Qt/E-Extended-4.4.3: Qtopia for mobile phones
Qt/E-4.7.1 with the latest updated Qt/Embedded, graphica interface library, fashionable and dynamic.
Touch panel and USB mouse could be used at the same time.
Qtopia2.2.0, Qt/ Extended-4.4.3,Qt/E-4.7.1 for booting selection.

Graphic Application
Test Program

Default Qtopia2.2.0 booting with test program supplied by Forlinx. The test program for the following application programs are all open source for your reference.

Browser software: Konqueror/E is used for network connection test and internet verifying. Both Chinese and English are available.

LED test: used for checking whether LED blinks or not.
Key test: test the 6 function buttons on the single board computer. These buttons could also be used to operate Qtopia2.2.0 as convenient as keyboard.
Buzzer Test: test whether PWM can control buzzer
AD Convert Test: interface value changes with rotating the ADC key.
3G dial-up software: support WCDMA ,CDMA2000 ,TD- SCDMA  3 standard 3G network that could be used directly browse webs after dialing-up.
WiFi: WAP connection is available for USB WIFI and SDIO WIFI which distribute IP address, gateway and DNS
 via DHCP. As connection is done, Konqueror/E could be used for surfing the internet.
Picture viewer
Media Player
Calendar, RTC, calculator, IE browser
File management
Terminal
Games
Touch panel calibration program
Plug-in manager
