i.MX6UL Linux Mini PC Development Board iMX6UL With GPRS + 7'' LVDS Output Display

FOB Reference Price:Get Latest Price
$180.00 - $200.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
D/C:
OKMX6UL-C3
Package:
CPU module board-to-board connect with carrier board
Model Number:
OKMX6UL-C3+7'' LVDS display
Type:
ARM board
Brand Name:
Original Brand
Place of Origin:
Hebei, China
CPU:
Freescale i.MX6Ultra Lite
Architecture:
ARM Cortex-A7
Main Frequency:
528MHz
RAM:
512M LvDDR3
Flash:
4G eMMC
Power Input:
5V
GPU:
PXP
LCD:
RGB 888
OS:
Linux 3.14.38
LVDS Output:
Supported, 7-inch LVDS display
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
one pc/box
Port
Hongkong/Shenzhen/Beijing/Tianjian
Product Description

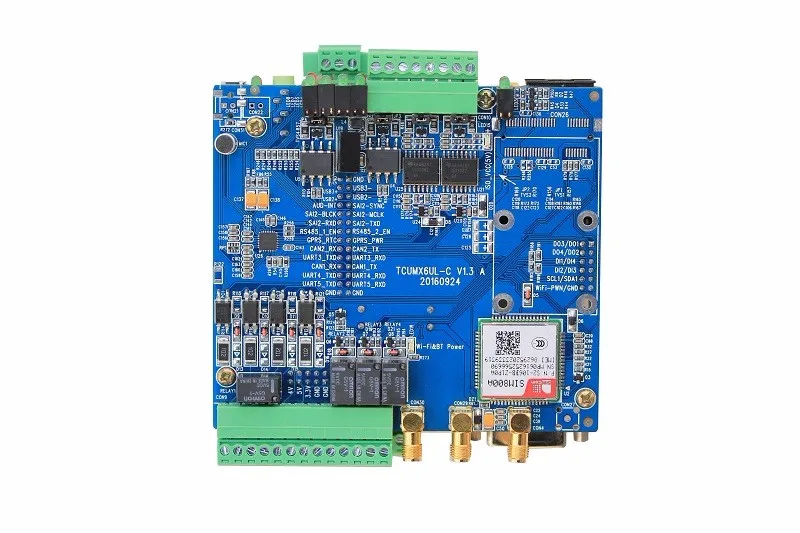

i.MX6UL Linux Mini PC Development Board iMX6UL + 7'' LVDS Output Display

Features

1. Designed based on Freescale i.MX6UltraLite processor, high performance, ultra low power;

2. Open source code makes it more convenient for users to do hardware designing and software tailoring;

3. CPU is with native supporting and complying with ISO7816 protocol, users could work it with encryption module;

4. Power fail safeguard to allow the system continue running for 15 seconds to avoid critical data loosing;

5. On-board ready-to-use connectors: 4x DI, 4x DO, 2x RS485, 2x CAN, 1x Ethernet (could be expanded to 2-ch), all are designed with isolated protection circuit;

6. Status LED indicator, make it convenient for users to know about system running, network communication and hardware interface working status;

7. Multiple communication types: on-board Ethernet (100M), WIFI&BT, 4G or GPRS modules;

8. Standard SD card slot, compatible with SD, SDHC and SDXC card, capability up to 64G;

9. Standard 3.5mm stereo earphone jack, builtin micphone, and users could also expand with 1Wx 2 speaker or 3.5mm single track micphone;

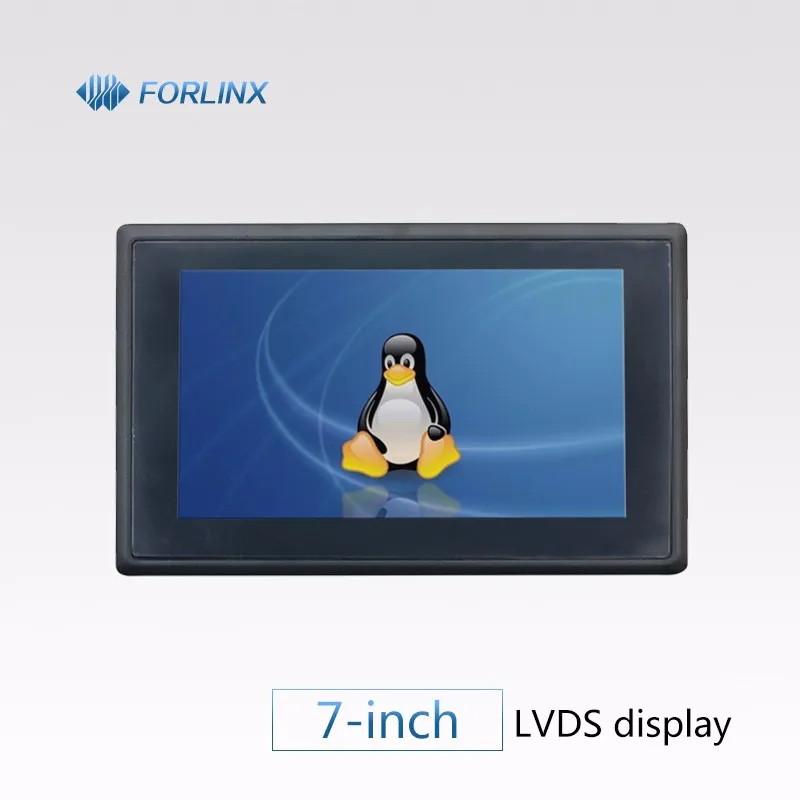

10.a 7'' LVDS display is supported;

11. Users could upgrade OS kernel by SD card;

12. Wide voltage range: system running stable from 9V to 15V to avoid system failure by voltage fluctuation;

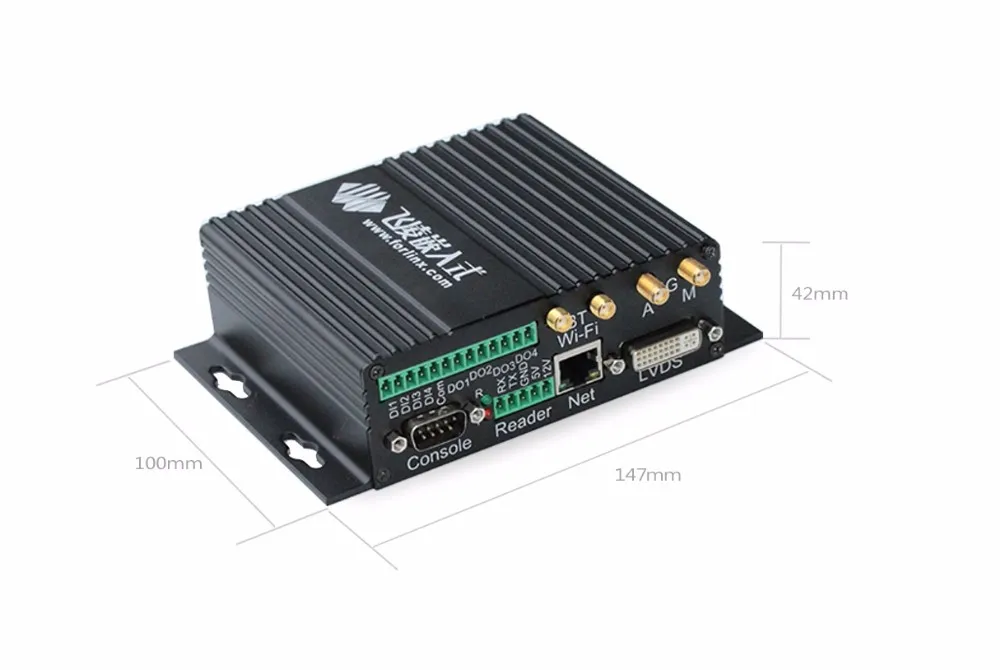

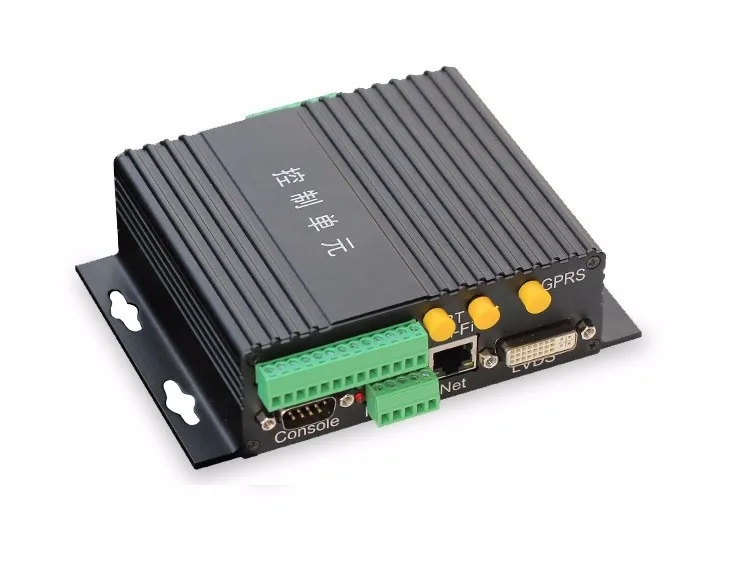

13. External case designed by aluminium alloy and the case is with mounting holes, dimensions with 147 x 103 x 42mm,

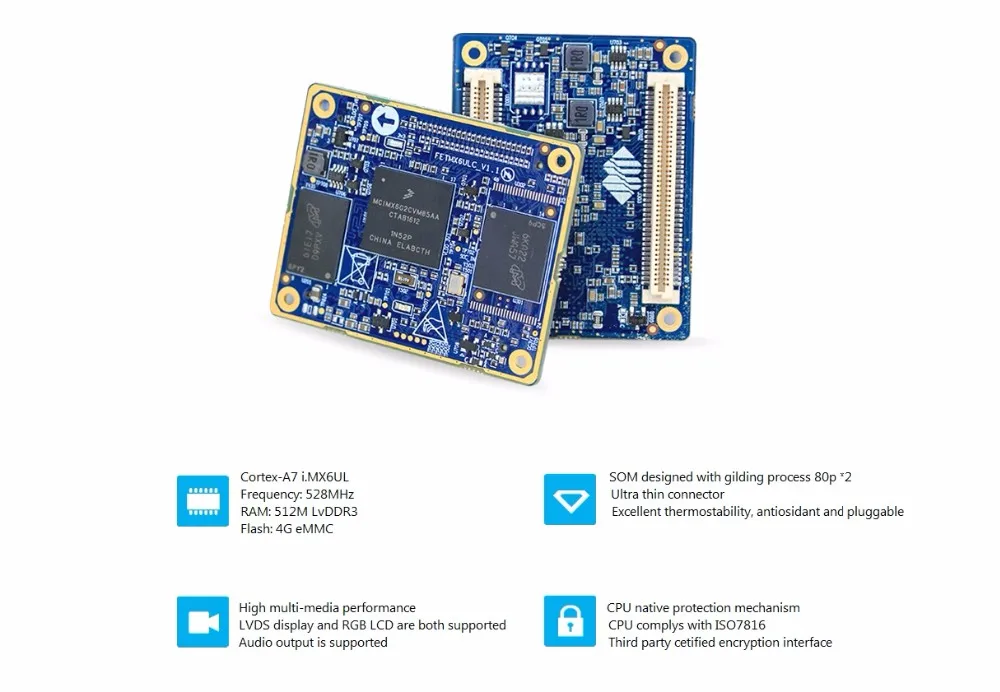

SoM designed based on i.MX6UltraLite processor
Cost efficient, open source file, low power performance and compact outline

Multiple network communicaton options

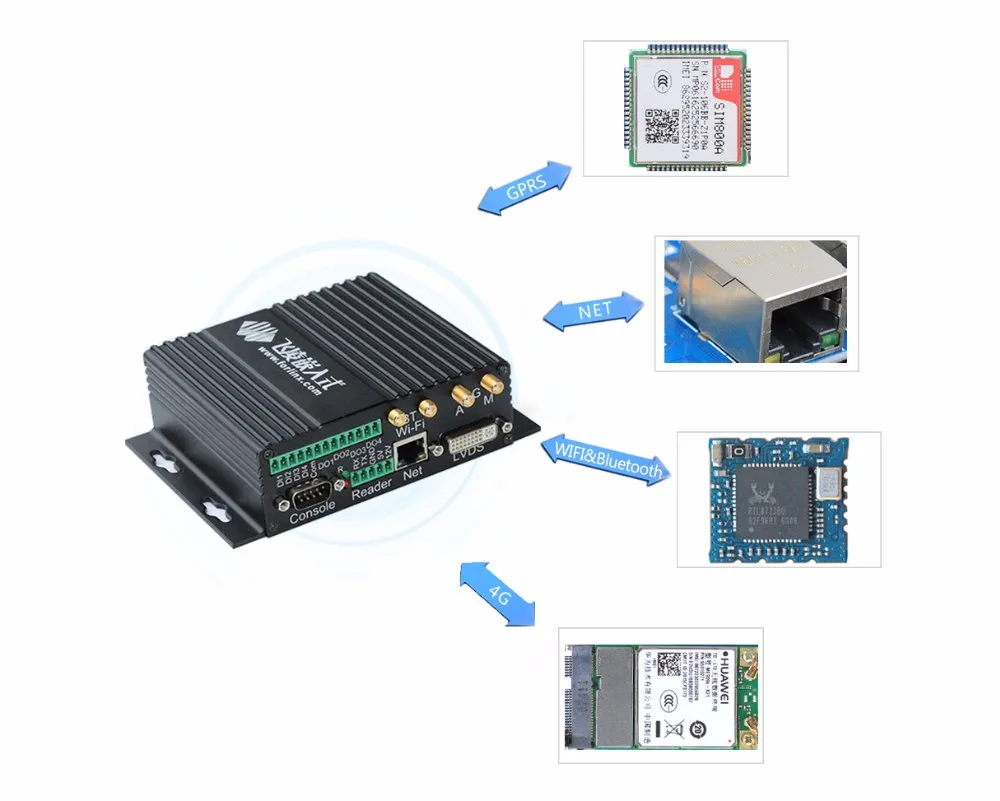

GPRS, WIFI&BT, Ethernet are all optional to users

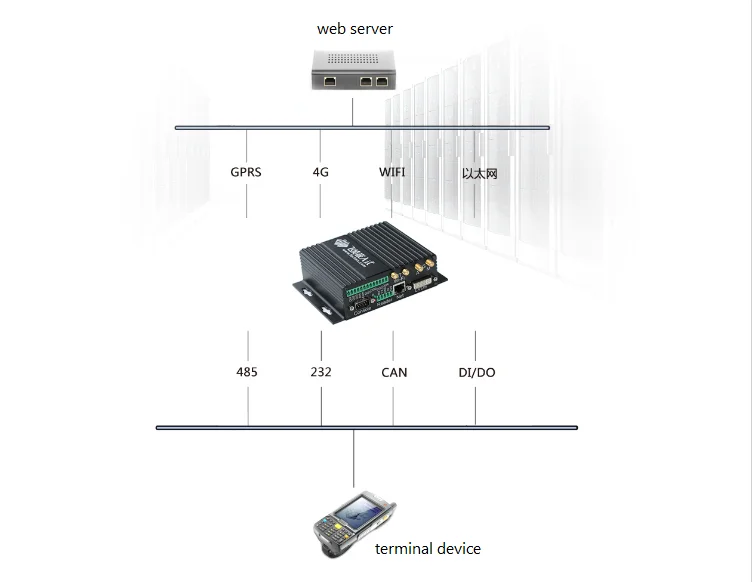

Abundant data acquisition interfaces for terminal device
2x RS485, 2x CAN, 1x RS232, 4x DI, 4x DO, all are with isolated and ground protection circuit, make the communication safe and realiable

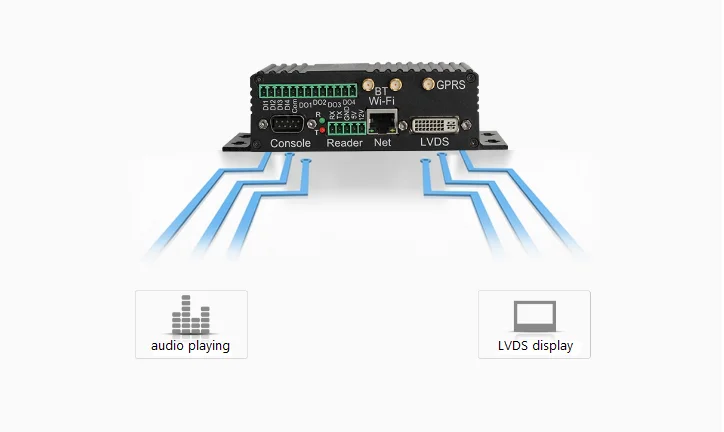

Audio playing, LVDS display and multi-media for HMI are all available

Standard 3.5mm stereo earphone jack with builtin micphone

users could also mounting with 1W x 2 speaker or 3.5mm single track micphone, 7'' LVDS display, annd DVI-I interface

This unit can meet users' all demand for power charging metering.

FETMX6UL-C2 System on Module Features
CPU
Freescale i.MX6Ultra Lite
CAN
2-ch
Architecture
ARM Cortex-A7
USB
2-ch
Main Frequency
528MHz
SD/MMC/SDIO
2-ch
RAM
512M LvDDR3
Ethernet
2-ch, 10/100M adaptive
Flash
4G eMMC
UART/IrDA
8-ch
Working Voltage
5V
EINT/GPIO
supported
GPU
PXP
Video Codec
software codec
Dimensions
50mm*40mm
EBI
supported
Connection Type
board-to-board connection
JTAG
supported
OS
Linux 3.14.38
Camera
1-ch, 5.0M Megapixel parallel interface
LCD
RGB 888
PWM
8-ch
Audio
3-ch
ADC
10-ch
IIC
4-ch
ISO7816-3
2-ch
SPI
4-ch
Keypad Port
8*8
QSPI
1-ch
SPDIF
1-ch
Project Name
OKMX6UL-C3 main control unit
CPU
Freescale i.MX6UltraLite, ARM Cortex-A7, 528MHz
RAM
512M LvDDR3 (commercial grade) or 256M LvDDR3 (industrial grade)
Flash
4G eMMC (commercial grade) or 256M NAND Flash (industrial grade)
External Memory
Standard SD card interface, compatible with SD, SDHC, SDXC cards, SDXC card capability up to 64G
Mobile Communication
SIM800A module, compatible with CMCC and CUCC GPRS (tested)
drawer style MINI SIM card slot (marked with "SIM-GPRS"
ESAM
ESAM chip is supported complying with ISO7816 protocol, we kindly provide reading and writing drivers, but the chip should be bought by users from a third party.
PSAM
PSAM card is supported, it was designed with a drawer style mini SIM card slot (it marked as 'SIM' on right side of the slot), we kindly provide reading and writing driver, but the card should be bought by users from a third party
DO
4x DO, electromagnetic relay isolation . contact rating: 1A 30V DC/0.5A, 125V AC/0.3A, 60V DC. Connector: green terminal bond with pitch of 3.81mm
DI
4x DI, photo coupler isolation, green terminal bond with pitch of 3.81mm, it's configured as direct current voltage input, voltage from 3V to 24V set to be high level and voltage below 1V DC set to be low level, it also could be set as internal isolated 5V power input and external dry contact
LCD Interface
Standard DVI-I connector, Topway brand LMT070DICFWD-AKA LCD is supported by default




Power Failure Protection
CPU is with 1x GPIO for external power supply mode detecting, when external power input voltage is above 8V, IO will be high level, and PG green LED on case is lighting; otherwise IO will be low level and PG green LED will be light off.
When external power input cut off, system will be automatically switch to get power supply from supercapacitors and the PG red LED will be lighting, the supercapactiors could supply power at least 15 seconds and detect whole unit internal 5V main power voltage. When voltage falls more than 10%, the whole device will be cut off to avoid system failure because of overlow voltage



UART (contains RS485)
UART1: 3-wire debug port, DB9 connector, without isolation, it's marked as Console on case
UART2: for card reader, 3-wire, green terminal bond, without isolation
UART3: for GPRS module, not drawn out
UART4: it's converted in device to RS485-1, drawn out by green terminal bond, with electrical isolation
UART5: it's converted in device to RS485-2, drawn out by green terminal bond, with electronical isolation
UAB
1x USB 2.0 OTG, standard Micro USB connector
1x USB 2.0 Host, standard USB A connector

CAN Bus
CAN1: CAN2.0 B, 1Mbps, with electronical isolation, it's used for communication with power charging controller
CAN2: CAN2.0 B, 1Mbps, with electronical isolation, for backup
Ethernet
Net1: standard RJ45 connector, 10M/100M adaptive, for connecting with supra system
Net2: standard RJ45 connector, 10M/100M adaptive, backup interface
WIFI&BT
RL-UM02WBS-8723BU-V1.2 module, IEEE 802.11b/g/n 1T1R WLAN and Bluetooth 2.1/3.0/4.0
RTC
RX8010SJ chip, on-board RS232 battery, it could continue working for a year

Audio
standard 3.5mm stereo earphone jack, built in single track micphone, users could also expand 1W x 2 speaker connctors or 3.5mm single track micphone jack (pad is preserved on PCB but without mounting hole on enclosure

Power Consumption
Rated voltage: 12V, work normally between 9V to 15V, it's designed with reverse polarity protection
power consumption is below 5W if works with a Topway display LMT070DICFWD-AKA
Dimensions
147mm x 103mm x 42mm
Mounting Hole
4 screws Φ4mm
Detailed Images
Packing & Delivery

one piece a box, box dimensions: 24*19*10cm

parcel could be sent out by express or air solution within 5 working days after receipt of full payment.

both freight prepaid and collected are optional
