i.MX6DL Freescale Cortex-A9 Microcontroller ARM Module Support1GHz/ 1G DDR3/8G eMMC/HDMI/LVDS/Camera/Ethernet

FOB Reference Price:Get Latest Price
$65.00 - $75.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
D/C:
CPU Module marked as i.MX6DL_Core_20150309
Package:
BGA
Model Number:
FETMX6DL
Type:
programmable IC
Brand Name:
Forlinx
Place of Origin:
Hebei, China (Mainland)
Frequency:
1GHz
CPU:
Freescale i.MX6Dual Lite industrial grade
RAM:
1G DDR3 (2G optional)
Shipping by:
Express
Input Voltage:
DC 5V 3A
Flash:
8G eMMC
Operating Temp Range:
both commercial and industrial grade optional
OS:
Android/Linux/Linux QT Ubuntu
Audio:
IIS interface
LCD:
RGB24-bit
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
one piece/box
Port
Tianjin/Beijing/Shenzhen/HK
Lead Time :
within 5 working days after receipt of full payment
Product Description

i.MX6DL Freescale Cortex-A9 Microcontroller ARM Module Support1GHz/ 1G DDR3/8G eMMC/HDMI/LVDS/Camera/Ethernet

The ARM module FETMX6DL was designed by Freescale Cortex-A9 featuring i.MX6Dual Lite processor.

The CPU module FETMX6DL is integrated with minimum system

SoM with minimum system and with LCD interface, which is very convenient for usres to do incoming quality control and aging by running the system just with connection of a 4.2V power input but no need support of the carrier board.

Hardware
i.MX6DL CPU Module
CPU
Freescal i.MX6DL
IIC
3-ch
Architecture
ARM Cortex-A9
SPI
2-ch
Main Frequency
1GHz
CAN
2-ch
RAM
1GB DDR3
USB Host
1-ch, USB2.0
Flash
8GB eMMC
USB Device
1-ch, USB2.0
Input Voltage
4.2V
SD/MMC/SDIO
2-ch, SD/MMC
2D/3D
supported
Ethernet
1-ch, Gigabit Ethernet
GPU
IIS interface
Mini-PCIE
1-ch
PMU
MMPF0100NPEP
UART/IrDA
5-ch, (1 debug port)
Dimensions
60mm*60mm
EINT/GPIO
supported
Connection Type
CPU module soldered on carrier board
Video Codec
hardware codec
OS
Android4.4/Linux3.0.35/
LinuxQT4.8.5
HDMI
1-ch
LCD
RGB888 (2-ch LVDS with 8-bit)
Camera
1-ch, 5MP parallel camera
Audio
IIS

Software
Android 4.4
U-boot Version
U-Boot 2009.08-dirty
Kernel Version
Linux-3.0.35








Drivers
Ethernet port driver(1000M/100M)
RTC driver
LED driver
Audio driver(IIS interface)
LCD driver
SPI driver
USB interface driver
Serial port driver(3 serial ports are included)
PWM driver (backlight)
User key driver
SATA2 driver
Blue tooth driver
eMMC driver
Watch dog driver
Ext4 file system
wifi driver
SD card driver
RS485 driver
LCD Frame Buffer
CAN driver
Touch driver(capacitive)
Linux QT 4.8.5
Cross-compiler
arm-fsl-linux-gnueabi-gcc-4.6.2
ARMv7 architecture, support hard floating-point calculation
Flashing method
USB download flashing
USB one-key flashing
Single/multiple files automatic flashing
Support system files flashing in EXT4 format
Flashing tool:MFG tools, Support WindowsXP/Vist/Windows7 PC environment

UBoot
Boot method selection(eMMC)
RAM(1G)
UBOOT boot-up LOGO
Linux kernel
Version:Linux-3.0.35
Support file systems in EXT4/NFS/FAT32/NTFS,etc format










Drivers









eMMCdriver(4G/8G)
LCD backlight driver, adjustable up to 255-grade
Watchdog driver
LCD driver(standard 7"LCD)
RTCdriver
USB Host driver
IO driver
USB Device driver
User key:4
TF/SD/MMC card driver: up to 32GB
SPI driver
Serial port driver:4
I2C driver
WM8962 audio driver
Camera driver OV5640
Ethernet driver, (AR8031,1000/100/10Mbps)
PWM control driver
3G driver
Capacitive touch driver
USBto serial driver
LVDS1/2-ch(1-ch support 1366×768 resolution,2-ch support 1920×1080 resolution)
SATA hard disk driver











APPs
WiFi config tool
USB camera test
Telnet
Recording & play test
RTC test
I2C test
SPI to CAN MCP2515
GPU test
Flexcan
IPU test
IP/Mac address modification
VPU test
Sleep/awakening
RGB screen backlight adjustment
Sqllite database
Speaker test
TTL to RS232
1080p videos and mp3 files play test
RS485 test
Watchdog test
Automatically mount and disconnect MMC/TF/SD card,U disk and SATA2ext4 hard disk
Recording/play test
Access to Internet via GPRS
FTP network
GPS test
Web Server of Boa
Access to Internet via 3G
Linux console
Cross-compiler
arm-fsl-linux-gnueabi-gcc-4.6.2
ARMv7 architecture,support hard floating-point calculation



Flashing method
USB download flashing
USB one-key flashing
Single/multiple files automatic flashing
Support system files flashing inEXT4 format
Flashing tool:MFG tools,
Support WindowsXP/Vist/Windows7 PC environment


UBoot
Boot method selection(eMMC)
RAM(1G)
UBOOT boot-up LOGO
Linux kernel
Version Linux-3.0.35
Support file systems in EXT4/NFS/FAT32/NTFS,etc format










Drivers
eMMC driver(4G/8G)
LCD backlight driver,adjustable up to 255-grade
Watchdog driver
LCD driver(standard 7"LCD)
RTC driver
USB Host driver
I/O driver
USB Device driver
User key driver:4
TF/SD/MMC card driver: up to 32GB
SPI driver
Serial port driver:4
I2C driver
WM8962 audio driver
Camera driverOV5640
Ethernet driver,(AR8031,1000/100/10Mbps)
PWM control driver
3G driver
Capacitive touch driver
USB to serial driver
LVDS1/2-ch(1-ch support 1366×768 resolution,2-ch support 1920×1080 resolution)
SATA hard disk driver











APPs
WiFi config tool
USB camera test
Telnet
Recording and play test
RTC test
I2C test
SPI to CAN MCP2515
GPU test
Flexcan
IPU test
IP/Mac address modification
VPU test
Sqllite database
Speaker test
Sleep/awakening
RGB screen backlight adjustment
TTL to RS232
1080p videos and mp3 files play test
RS485 test
Watchdog test
Automactic mount and disconnect MMC/TF/SD card,U disk and SATA2ext4 hard disk
Recording/play test
Access to Internet via GPRS
FTP network
GPS test
Boa Web Server
Access to Internet via 3G
SPI test

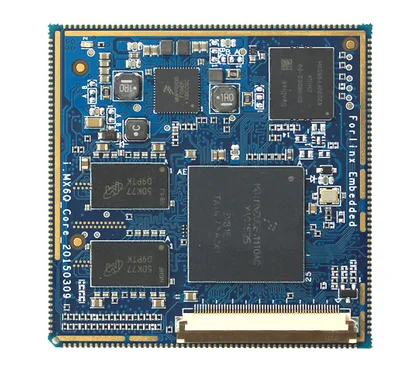

Detailed Images

Structure dimensions: 60mm x 60mm
Artcraft: 8-layer PCB

Application

Automotive infotainment, digital signage, HMI, in-flight entertainment, intelligent industrial control system, IP phones, IPTV, portable medical, tablets.

Plenary product information for reference

Packing & Delivery
Generally the SOM could be packed as one piece a box (24*19*10 cm), the parcel(s) could be sent out by express/air within 3~5 working days after receipt of full payment.
