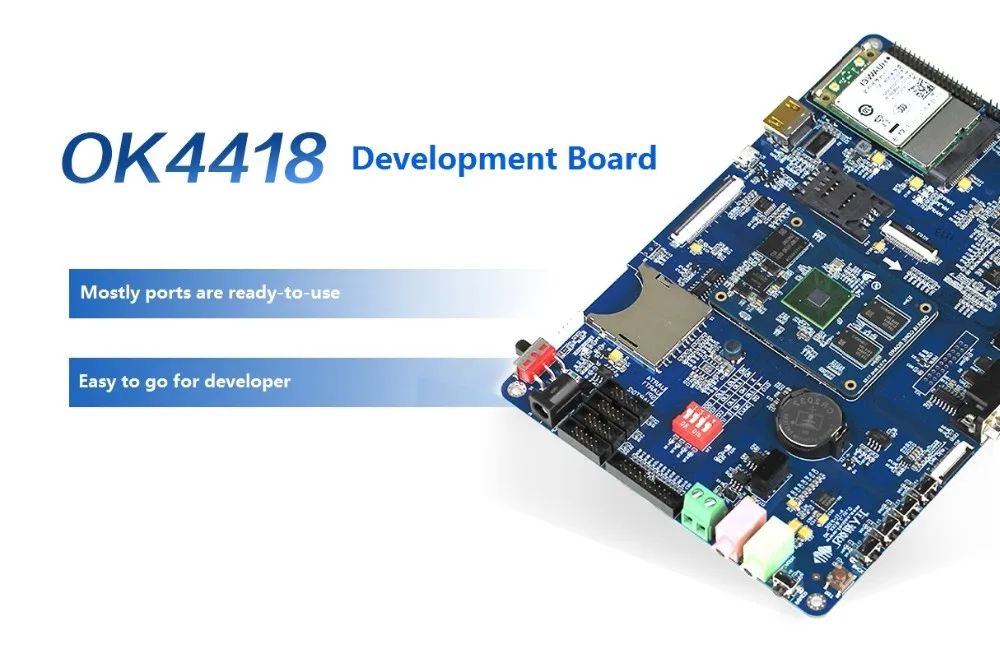

S5P4418 ARM Development Board OK4418 Supports Android 5.1 Linux 3.4

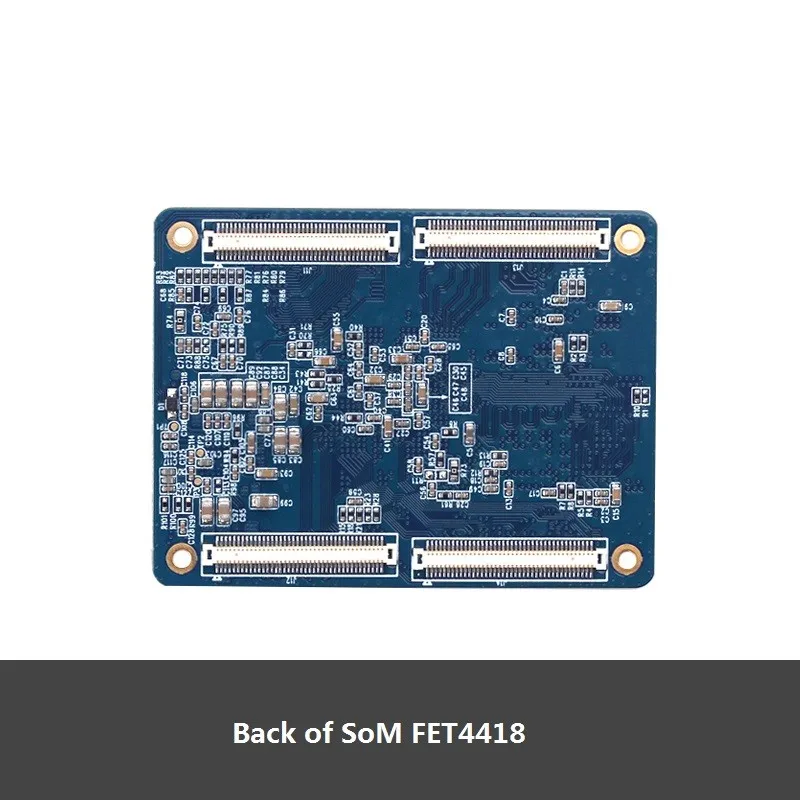

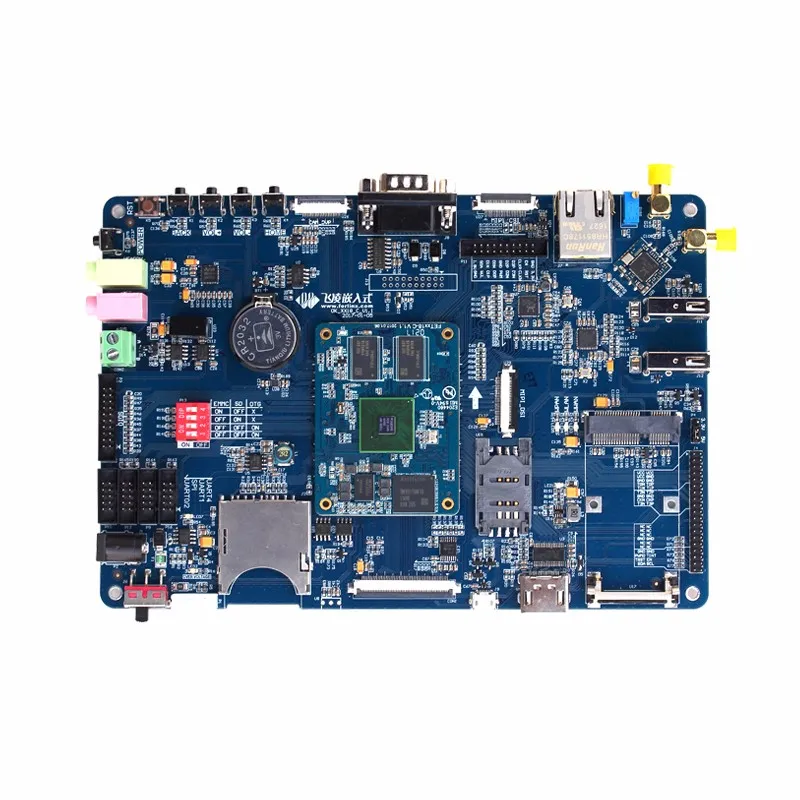

OK4418 is an Cortex-A9 featuring ARM development board designed based on Samsung S5P4418 quad core processor with main frequency of 1.4GHz, 1G DDR3 and 8G eMMC, it consists of carrier board and SoM (system on module) FET418. Chipset including CPU, RAM and RoM are all on SoM, while all interface connectors are on carrier board. It has on-board SPI, RS485, CAN, UART, LVDS,HDMI, MIPI, Gigabit Ethernet are all ready-to-use for developers. What's more, expand modules like MIPI camera, DVP camera, WIFI&BT, 3G/4G are also available. Sleeping and waking up modes are more conveniently to users.

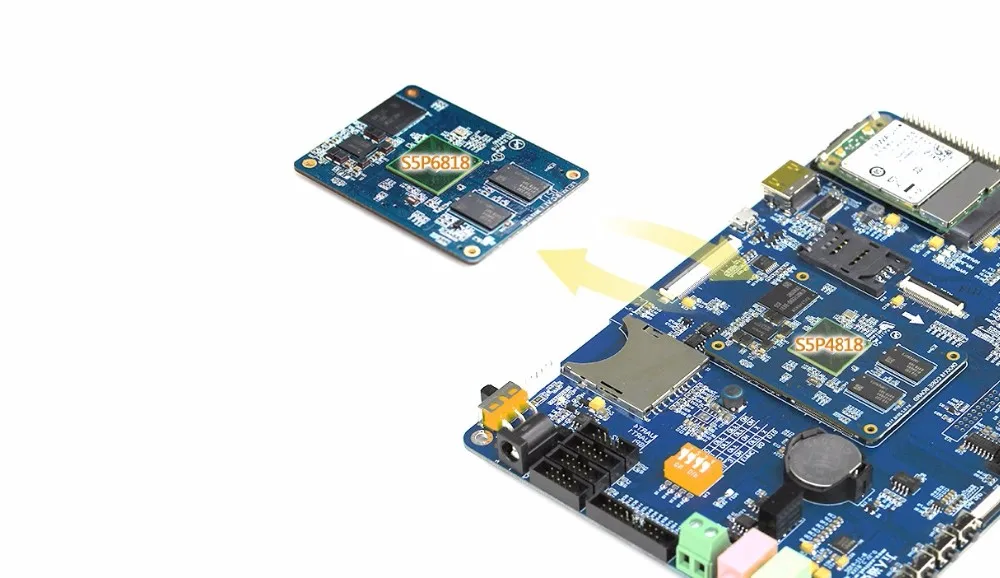

Perfect compatible with S5P4418 and S5P6818 to let switching easy


Two CPUs share one SoM design since S5P4418 and S5P6818 pins are completely compatible, users could upgrade S5P4418 to S5P6818 on a same carrier board without any change.

Powerful multi-media peformance to make displaying different

Supported with 3D graphical processor and video codec capability up to 1080P

Different display types (RGB, LVDS, MIPI, HDMI, etc.) are all available, with resolution up to 2048*1280

Excellent Li-battery power management system

The SoM FET4418 is with PUM chip for Li-battery power management which ready-to-use for users.

Dynamic frequency modulation to lower your product power consumption.

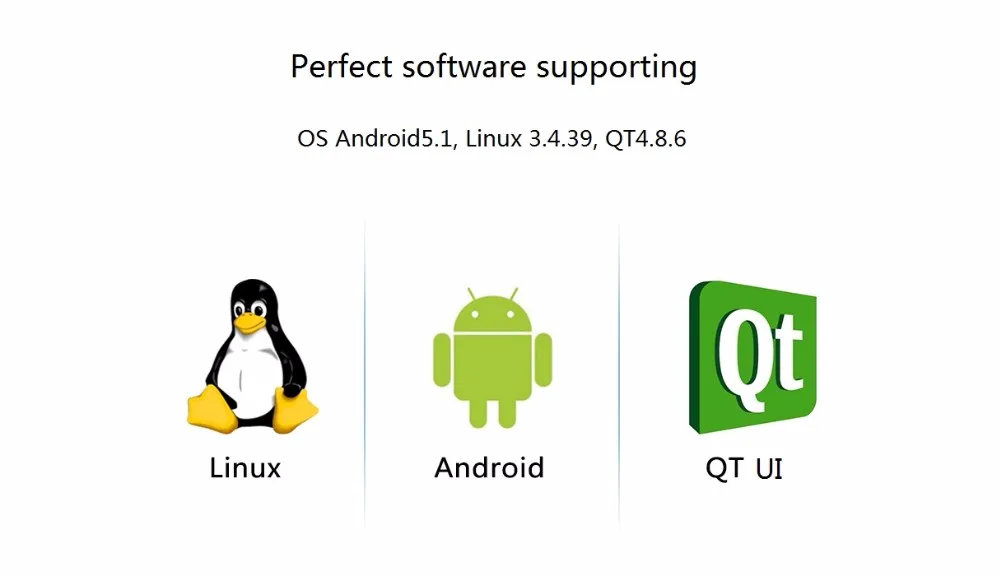

OS supporting

Application

Hardware Features

S5P4418 SoM Features
CPU
Samsung S5P4418XCO-LA40
Architecture
ARM Cortex-A9
Main Frequency
1.4GHz
Core
Quad core
Working Temp
0-70℃
Working Humidity
10% to 90% none condensing
Function
Number
Spec.


Display
RGB LCD
1
RGB 888, maximum resolution up to 2048*1280


LVDS


1
supporting JEIDA and VESA output, 4x data channel, 1x clock channel, maximum resolution supporting 2048*1280
HDMI
1
HDMI 1.4, 1080*1920

MIPI_DSI

1
MIPI DSI SPEC V1.01r11, up to 4x data channel, resolution up to 1920*1200


Camera
MPEG
2
8-bit parallel interface, pixel up to 5-Megapixel
MIPI_CSI
1
D-PHY spec. V1.00, pixel up to 5-Megapixel


SD/MMC/SDIO


 2
3-ch supported by CPU, and 2x SD/MMC drawn out by SoM, while the eMMC channel was not drawn out

USB Host

1
USB2.0 host (rate up to 480Mbps), integraged with HS USB Phy
USB OTG
1
USB2.0 OTG (480Mbps), integrated with HS USB Phy
IIC
3
100kbit/s and 400kbit/s
UART
6
each transferring rate up to 5.0Mbps
IIS
3
supporting up to 3x IIS
SPI
3
supporting up to 3x SPI
Ethernet
1
10/100/1000Mbps adaptive
PWM
4
4x PWM output
SPDIF
1
SPDIF interface

ADC

7
12-bit resolution, maximum input frequency 100KHz, power input range 0-1.8V
EBI
1
Maximum data bus width: 16-bit,
maximum address bus: 14-bit
JTAG
1
standard JTAG port

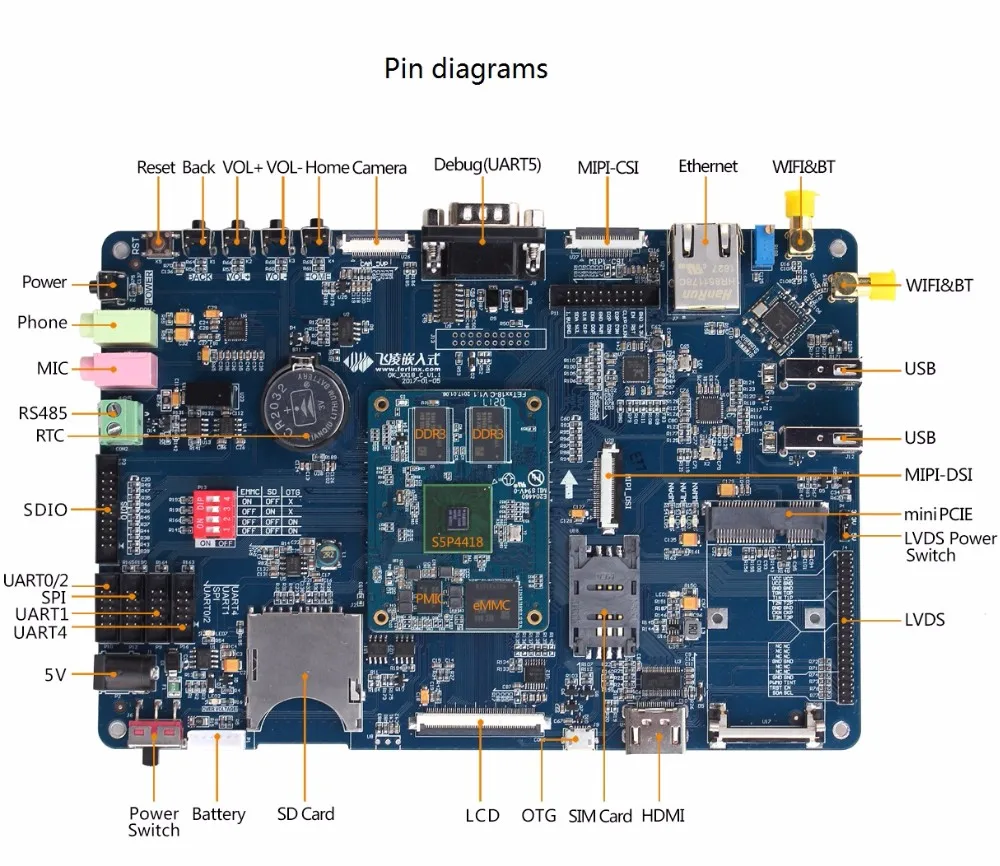

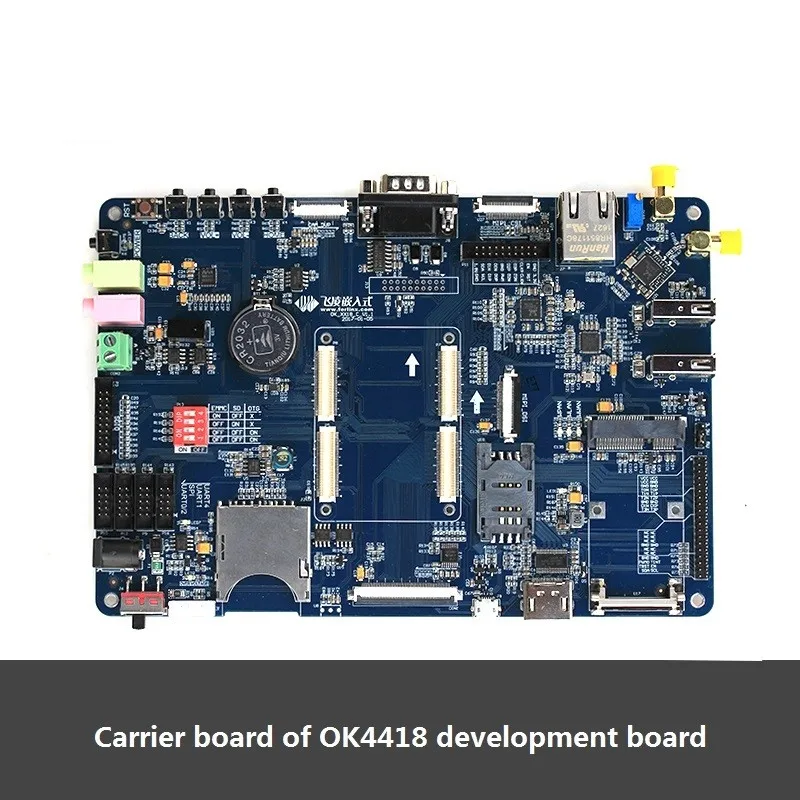

OK4418 Development Board Features




Display
RGB LCD
1
RGB888, resolution: 2048*1280
LVDS
1
JEIDA and VESA output, 4x data channel, 1x clock channel,
resolution up to 2048*1280
HDMI
1
HDMI 1.4, resolution up to 1080*1920
MIPI_DSI
1
MIPI DSI SPEC V1.01r11, 4x data channel, resolution: 1920*120

Camera
DVP
1
8-bit parallel interface, pixel up to 5-Megapixel
MIPI_CSI
1
D-PHY spec V1.00, pixel up to 5-Megapixel
Audio
1
1x MIC, 1x Phone
SD/MMC
1
1x SD, compatible with SDHC, SDXC (UHS-I)
SDIO
1
pitch of 2mm and drawn out by dual-raw pins (20-pin)
USB Host
2
USB2.0 host (rate up to 480Mbps), integrated with HS USB Phy
USB OTG
1
USB2.0 OTG (rate up to 480Mbps), integrated with HS USB Phy
UART
5
4x TTL, 1x RS232 (UART5), 5.0Mbps, 4x 3-wire, 1x 5-wire
IIC
3
IIC1 and IIC2 are CPU native IIC, IIC3 is an IO analogy IIC
SPI
1
Ethernet
1
10/100/1000Mbps adaptive
WIFI
1
RL-UM02WBS-8723BU-V1.2 IEEE 802.11b/g/n 1T1R WLAN and Bluetooth
BT
1
RL-UM02WBS-8723BU-V1.2 IEEE 802.11b/g/n 1T1R WLAN and Bluetooth
RS485
1
with isolated protection design
Mini-PCIE
1
for 3G/4G module
IrDA
1
empty solderred

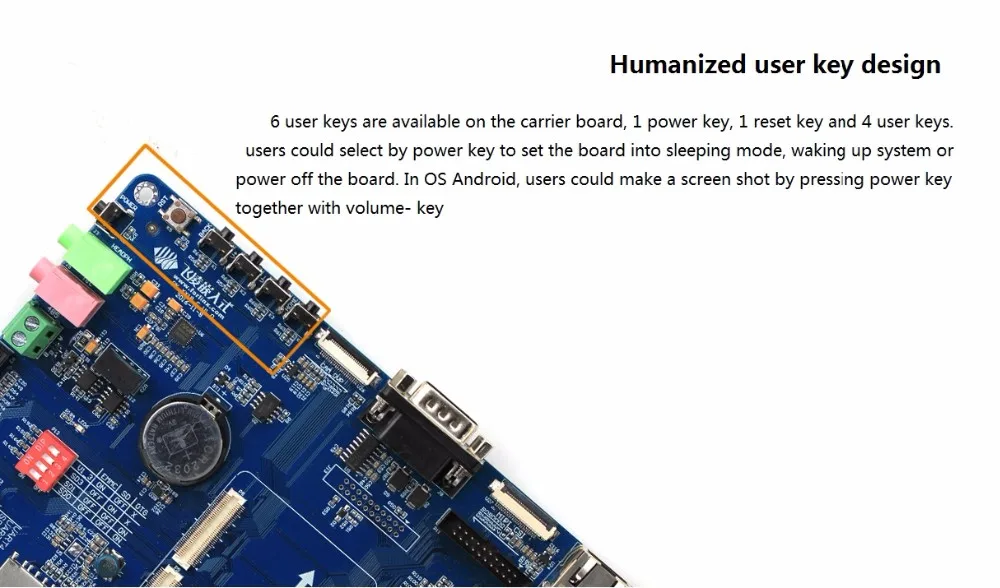

User Key
6
1x power switch, 1x reset, 4x user key. sleeping/waking up and powering off modes are supported by power key. screen scraping is supported by volume (power)key in OS Android
OS Android 5.1.1
Compiler
arm-eabi-gcc-4.8, OpenJDK7.0
OS Flashing
flash OS image to eMMC via SD card
Boot Mode
boot from eMMC
Kernel Version
Linux 3.4.39
Android Version
Android 5.1.1













Driver
eMMC
UART/RS232
SD card
RS485
LVDS displaying
ADC
RGB LCD displaying
accelerator sensor
MIPI displaying
IrDA
HDMI
RTC
LCD / MIPI / LVDS capacitive touching
IO
PWM
LED
LCD / MIPI / LVDS backlight driver, 255-class adjustable
user key
parallel interface camera OV5640 driver
IIC
MIPI camera OV5645
SPI
Gigabit Ethernet
USB host driver, supporting mouse and keyboard
4G module
USB device
BT module
WM8960 audio driver
WIFI module
sleep mode waking up
