AM5718 SoM System on Module Cortex-A15 DSP Cortex-M4 PRU Supports Linux 4.9.41

FOB Reference Price:Get Latest Price
$150.00 - $180.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
D/C:
FET5718-C
Package:
board to board
Model Number:
FET5718-C
Type:
PCB
Brand Name:
Forlinx
Place of Origin:
Hebei, China (Mainland)
CPU:
TI Sitara AM5718
Architecture:
ARM Cortex-A15+Cortex-M4+DSP+PRU
Frequency:
1.5GHz, 213MHz, 750MHz, 200MHz
RAM:
1G DDR3L
Flash:
8G eMMC
OS:
Linux 4.1.49 QT5.6 Wayland
Display ourput:
LCD/ HDMI
On-board connector:
USB 3.0, PCIe, QSPI, etc.
Working Temp:
-40 to +85℃
Carrier board dimensions:
50* 70mm
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
one pc/box or multiple pieces packed in carton
Port
Tianjin/Shenzhen/Hongkong
Product Description

AM5718 SoM System on Module Cortex-A15 DSP Cortex-M4 PRU Supports Linux 4.9.41

FET5718-C is a system on module (SoM) designed based on TI AM5718 processor, it has below features

★ ARM Cortex-A15, frequency up to 1.5GHz;

★ DSP C66x with frequency of 750MHz

★ 2x dul-core ARM Cortex-M4 with frequency of 213MHz;

★ 2x dual-core PRU with frequency of 200MHz;

★ High-speed transmission interfaces like USB 3.0, PCIe 3.0, HDMI 1.4, UART*10, QSPI*1, CAN*2, Gagibit Ethernet*2 are available and also

powerful multi-media performance, wide range of applications;

★ OS options: Linux 4.9.41 + QT5.6, TI-RTOS;

★ 12-layer EINT PCB designing;

★ the development board consists of carrier board and SoM, and the carrier board designed with 4-layer PCB and SoM with 12-layer PCB;

★ carrier board dimensions of 130*190mm, and connector hight between SoM and carrier board is just 2mm

★ SoM with 320 pins that all functions of CPU are available;

★ Industrial grade temp width: -40℃ to +85℃

A Heterogeneous Multi-core Development Platform

Demos including command line and QT demos such as OpenCV, OpenCL, OpenGL demos, and also DSP and PRU environment build up and development demos

Powerful Multi-media Performance

The development board is integrated with SGX544 3D and GC320 2D GPU which are applicable for senior graphic UI, meanwhile, Cortex-M4 GPU IPU2 is specially used in IVA image and video hardware codec
perfectly supports H.264, MPEG4 multiple encoding forms and video hardware decode playing, supports multiple video together with decoding playing, multiple decoding channels up to 1080P@60FPS, supports MJPEG iamge hardware codec, and also the VPE can well support hardware image, video zooming and color spacing converting.

Multiple Expanding Functions

Set LCD resolution and boot logo in UBOOT,
flash OS image just by an SD card, WIFI, MIPI camera, CPU frequency auto adjusting and appoint a fixed frequency

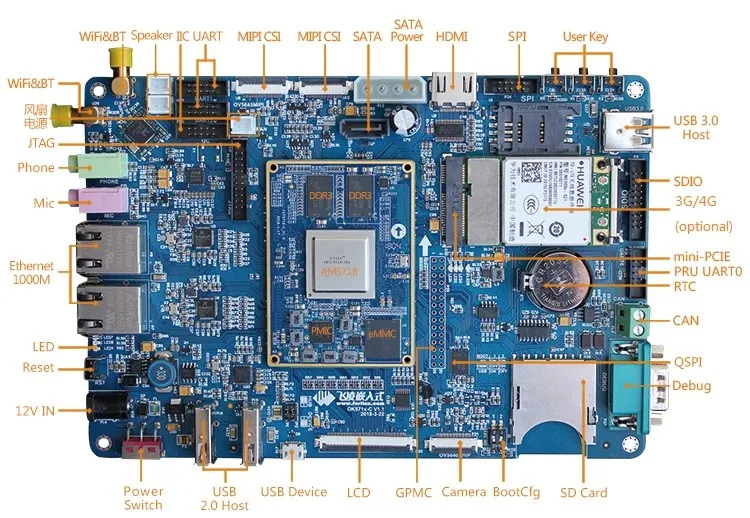

Pin Diagrams Overview

Applications

The AM57X could be widely used in insutrial communication, HMI,factory automation, building automation, machine vision, medical image, measuring, auto multimedia, etc.

Available Demos
Forlinx Demo

  BackLight

  Keypad

  RTC

  Network

  Ping

  DemoBrowser

  Calculato

  WatchDog

  Musicplayer

  Audiorecorder

  WIFI

  Terminal

  Can

  4G
ARM Function

  DDR Bandwidth

  Memory Latency

  NBench

  Linpack

  Posix_SMP

  Communication Bandwidth

  Communication Latency

  Whetstone
3D

  Chameleon

  KMS Cube

  Coverflow

  Navigation

  ExampleUI
Multimedia

  IVAHD H.264 Decode

  VIP VPE IVAHD MPEG4 Encode and Decode

  Audio Capture

  H.265 (HEVC) Decode

  DSP C66 Image Processing

  AAC Decode

  IVAHD MJPEG Encode

  IVAHD H.264 Encode
Settings

  Network Settings

  System Shutdown

  Task Info

  Refresh Matrix

  Memory

  atrix Shutdown

  system Info
Video Analytics Demo

  OpenCV+OpenCL+OpenGL Demo
USB

  USB Bonnie
CPU Frequency Settings


Command Line Testings
System Information Exploring

Key testing

UART testing

Watchdog testing

WIFI testing

Screenshot testing

RTC testing

Temp sensor testing

CAN testing

USB mouse testing

USB 2.0

USB 3.0

HDMI testing
LCD Backlight Adjusting

Camera testing

SD card

Ethernet configuration

Websever

Audio recording/ playing

Sobel algorithms

Face detection

PCIE

QSPI

4G

SATA

SPI

BT
Hardware Codec Testing
Video Playing

VPE for color space converting

Gstreamer for color space converting and zooming

Video shirinking

Video enlarging

Color space converting
Image Codec

MJPEG decode

MJPEG encode
Video Codec

H.264 encode and decode

MPEG4 encode and decode
PRU Testing
CSS Tutorial

CCS installation

Install PRU compiler in CCS

PRU boot and stop

Build new CCS project
TI AM57X Demos Compiling and Testing

Leading-in project Compiling project

Demo testing PRU booting
Forlinx AM57x Demos Compiling and Testing

Leading-in project Compiling project

LED demo testing UART testing
Work with DSP and IPU
Heterogeneous multi-core processor communication testing
Operate peripheral by DSP
Recompile demo by CCS
Cortex-A15 application compiling

Hardware Features

Overview of SoM FET5718-C
CPU
TI Sitara AM5718

Architecture
Cortex-A15-1.5GHz
DSP-C66X-750MHz
2x dual-core Cortex-M4-213MHz
2x dual-core PRU-200MHz
PowerVR SGX544 3D GPU
Vivante GC320 2D GPU
RAM
 1GB DDR3L
Flash Memory
8GB eMMC
Dimensions
50*70mm
Connection Type
board to board connectors
PMU
TPS659162RGZR
Voltage Input
5V
Working Temp
-40℃ to +85℃
Relative Hummidity
10% to 90% RH none condensing
OS
Linux4.9.41+ QT5.6+ Wayland
 SoM FET5718-C  Features
Interface
QTY
Spec.
LCD
≤3
RGB 888
HDMI
1
HDMI 1.4a, 1080P@60Hz;
36-bit RGB display;
HDCP encryption;
Deep color mode (10-bit, 12-bit color depth are both supported by pixel clock of 148.5MHz
Camera
≤4
2x 8-bit DVP, up to 5.0MP
2x 8/ 16/ 24-bit DVP
MIPI CSI-2
≤2
CSI-2_PHY1: 1 clock lane+ 4 data lane
CSI2_PHY1: 1 clock lane+ 1 data lane


SD/ MMC/ SDIO


≤4
1-bit or 4-bit transferring mode is supported by SD and SDIO card with UHS-I SDR104 mode (up to 104MB/s)
SD/ MMC/ SDIO1: 4-bit data
SD/ MMC/ SDIO2: 8-bit data (used as eMMC on SoM)
SD/ MMC/ SDIO3: 8-bit data
SD/ MMC/ SDIO4: 4-bit data
USB
2
USB2.0 (up to 480Mbps), integrated with HS USB PHY

IIC

≤5
IIC1/ 2: up to 400Kbps, standard OD
IIC3/ 4/ 5: up to 3.4Mbps, analogy OD
HDQ1W
≤1
Support TI/ Benchmarq HDQ master device function
Comply with Dallas 1-Wire protocol
UART
≤10
 UART1: full serial interface is supported
UART3: IrDA 1.4, CIR are supported
others are standard interface
SPI

≤4
up to 4x SPI, each with up to 4 master channel

QSPI
≤1
 work as master mode only
6 signal pins
McASP
≤8
 supports 8-ch audio at most
McASP1/2: up to 16 separate TX/ RX channel
McASP3-8: up to 4 separate TX/ RX channel
USB3.0
≤1
super speed USB3.0 Dual-Role-Device, Host is supported
USB2.0
1
high-speed USB 2.0 Dual-Role-Device, Host is supported
SATA
1
SATA Gen2

PCIe

≤2
 PCI Express 3.0 subsystem, with 2x 5-Gbps channel

1x Dual-channel interface with GEN2 standard, 2x Single-channel intgerface with Gen2 standard
CAN
≤2
two CAN controller at most, complys with CAN2.0 protocol
Ethernet
≤2
3-port gigabit ethernet switch subsystem provides ethernet packet communication and can be configured as an ethernet switch. It provides two network ports and available for RGMII/ RMII/ MII interface, 10M/ 100M/ 1000M adaptive
PWMSS
≤3
supports up to 3x PWMSS, each is available for:
eHRPWM: 16-bit timer, up to 2 separate PWM output
eCAP: 32-bit timer, one channel is special for input capture pin
eQEP: rotating decode unit
JTAG

supported
standard IEEE1149.1 interface
Keypad
supported
9*9 keypad

GPMC

1
8-bit/ 16-bit data bus width
up to 28-bit address bus
up to 8-bit chip selection bus
Detailed Images
Packing & Delivery

generally, the goods could be packed by box or carton depends on different order volume.

goods could be dispatched by express or air logistics solution

Our Company

Founded in 2007, Forlinx Embedded Tech. Co., Ltd. is a leading provider of trusted ARM technology based embedded products and solutions. Forlinx offers comprehensive hardware design, system integration and product selling with global logistics support.
Aiming at providing customers with good-quality, high-performance products and service, Forlinx set up an R&D center in Beijing except in its headquarter city and got IDH authority of TI and NXP in China mainland. With an excellent and experienced R&D team, stable supplying chain and powerful sales force, Forlinx has launched TI AM335x series, NXP i.MX6 series based single board computers and system on modules, and also Samsung processors based development platforms to take users ready-to-use and easy-going development platforms, which help clients to shorten their product time-to-market.
In the future, we will spare no efforts to continue to take customers' demand as the guidance and in a spirit of innovation and enterprising to take customers more professional and efficient products and service.
