M2M IoT SCADA Gateway Module RS485 Modbus RTU 4G ZigBee LoRa MQTT

FOB Reference Price:Get Latest Price
$95.00 - $120.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
D/C:
FCU1101
Package:
SMT
Model Number:
FCU1101
Type:
ARM board
Brand Name:
Original Brand
Place of Origin:
Hebei, China (Mainland)
CPU:
Freescale i.MX6Ultra Lite
Architecture:
ARM Cortex-A7
Main Frequency:
528MHz
RAM:
256M DDR3
Flash:
256M NAND Flash
Power Input:
9V~36V
4G:
EC20
Zigbee or LoRa:
supported
Size:
105mm*100mm*33mm
Modbus:
supported
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
one pc/box
Port
Hongkong/Shenzhen/Beijing/Tianjian

M2M IoT SCADA Gateway Module RS485 Modbus RTU 4G ZigBee LoRa MQTT

FCU1101 is a gateway module specially designed for IoT related applications based on NXP i.MX6UL processor with frequency of 528MHz, it has 256MB RAM and 256MB NAND Flash which could be upgraded to 1GB. Linux 3.14 is well supported with hardware float pointing. Prepherial interfaces such as RS485, Ethernet, WIFI, 4G, ZigBee/ LoRa are all available. It has stable performance under rough environment(-35℃ to +70℃)

Powerful communication performance



Flexible networking; 2.4GHz operating frequency

Supports fixed transmission, transparent transmission, four online working modes switching freely;

powerful pentrability, long distance communication and low power performance

RS485 Communication

4x RS485, with 1.5KV isolation and ESD4 protection

Complies with Modbus protocol(RTU mode)

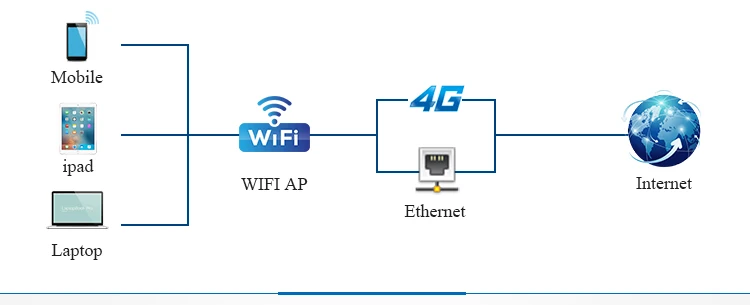

WIFI, 4G and Ethernet

4G module all Netcom
10/ 100M auto-negotiation Ethernet with RJ45 connector
IEEE802.11b/ g/ n, STA and AP modes optional, available for WPA2 encryption mode
Available for multiple protocols
Web Server, IPtables, Sqlite, HTTP, FTP, Telnet, SSH, TFTP, DHCP, TCP/ IP and UDP are all supported, convenient for remote debugging and

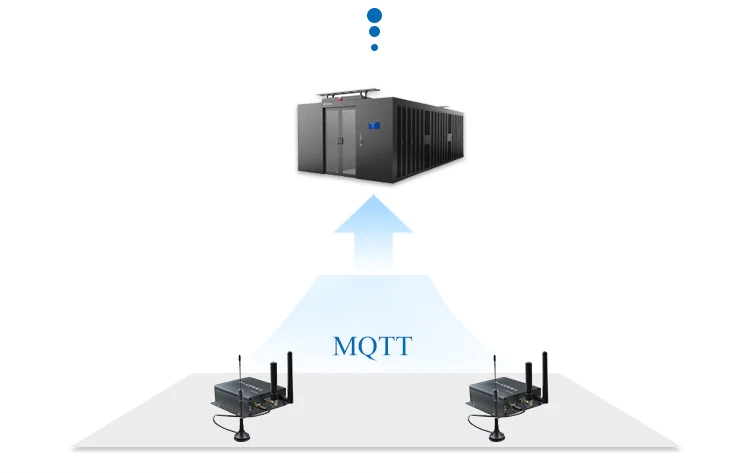

Standard MQTT
MOQQ is supported to visit Ali Cloud directly for news subscription or announcement
Stable system performance, easy for development
Diagram




Target Application

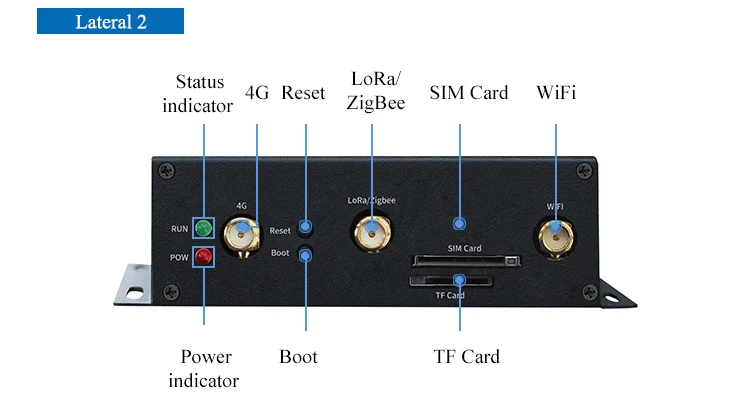

 Hardware Features

Item Spec.
 CPU NXP i.MX6UltraLite
 Main Frequency 528MHz
 Architecture ARM Cortex-A7
 RAM 256M DDR3
 Flash 256M NAND Flash(1GB expandable)
 Ethernet 1-ch, 10/ 100Mbps
 RS485 4-ch, with 1.5KV isolation protection, ESD4
 Reset 1-ch, for system reseting
 Boot key 1-ch, works together with reset key for firmware updating
 4G

 Model: EC20(without GPS and audio functions)

 Netcom: China Mobile 4G/ 3G/ 2G, China Union: 4G/ 3G/ 2G and China Telecom 4G

 ZigBee 1-ch, 2.4GHz, model: WLT2408NZ Optional
 loRa

 1-ch, 433MHz, 20dBm, 27dBm, 30dBm are all suppported

 model: E32-TTL-100(433T20DC) 20dBm(default)

      E32(433T27D)

      E32-TTL-1W(433T30D)

 TF card tested up to 32GB
 RTC Protection for power failure, supports NTP
 Power IN

 DC12V input, available for DC9V to 36V

 designed with anti-reverse and over-current protection circuit

 RTC On-board CR2032 RTC
 Power Input Rated voltage 24V, workable range 12V to 24V, designed with reverse protection
 Environment

 RM: 5% to 95%, non-condensing

 Working temp: -35℃ to +70℃(WIFI is 0℃ to +70℃)

 Storage temp: -40℃ to +85℃

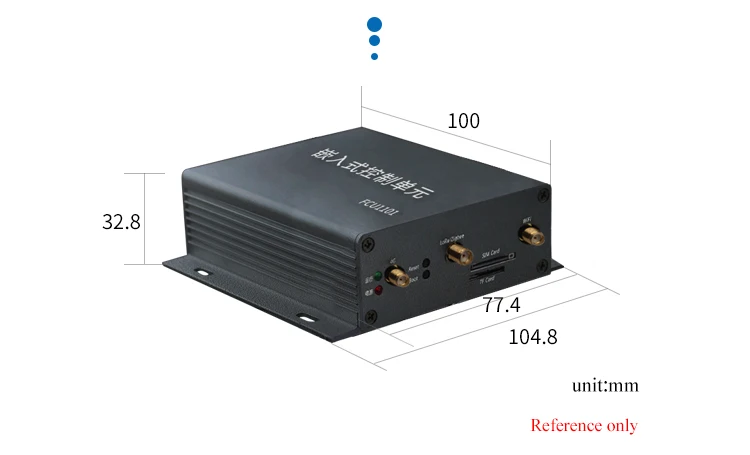

 Dimensions

 105mm x 100mm x 33mm



Software Features

Item Spec.
 OS Linux 3.14.38
 File System  Yaffs2
 GCC 4.6.2
 RS485 Supported with testing demo, supports Modbus (RTU)
 Network  TCP/ IP, UDP, DHCP, TFTP, FTP, Telnet, SSH, Web, HTTP, IPtables, MQTT, SQLITE
 WIFI Available for STA and AP modes
 4G Wireless EC20, supports 4G wireless network (China Mobile, China Union, China Telecom)
 RTC Supported and available for NTP
 ZigBee Supported, WLT2408NZ
 LoRa Supported, E32-TTL-100
 Watchdog Supported
