Crossover Processor RT1050 Series MCU Based IMXRT1052 Development Board 4M QSPI NORFLASH 16M SDRAM Better & Cheaper Than Stm32

FOB Reference Price:Get Latest Price
$1.00 - $45.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Quick Details
board to board connector
Model Number:
Core Board
Brand Name:
Original Brand-Forlinx
Place of Origin:
Hebei, China (Mainland)
Working temp:
-40℃ to +85℃
Power input:
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details

Crossover Processor RT1050 Series MCU Based IMXRT1052 Development Board 4M QSPI NORFLASH 16M SDRAM  Better & Cheaper Than Stm32

OK1052-C is a development board designed based on NXP Cortex-M7 crossover MCU i.MX RT1052. It operates at speeds up to 528MHz to provide high CPU performance and best
real-time response. The i.MX RT1052 processor has 512 KB on-chip RAM,which can be flexibly configured as TCM or general-purpose on-chip RAM. 16MB/ 32MB SDRAM, 4MB/ 16MB QSPI-NorFlash are optional on SoM FET1052-C.

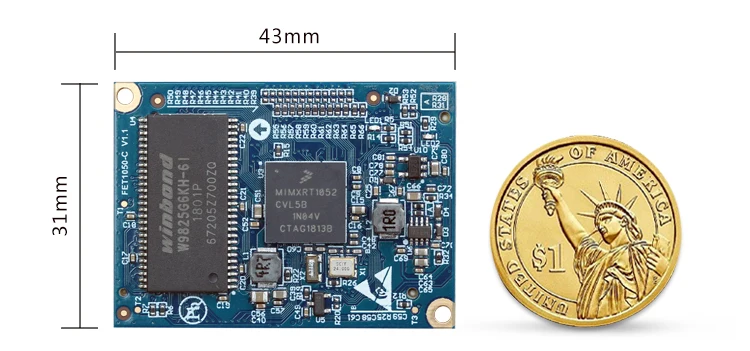

The SoM FET1052-C is an industrial grade item with working temperature ranges from -40℃ to +85℃ and it has a compact appearance that dimensions only 31mm * 43mm, the SoM is designed with a couple of 80-pin connectors with pitch of 0.8mm, all 160pins of the processor are drawn out with GPIO up to 124 pins. Other peripheral pins such as UART, Ethernet, USB, CAN, PWM, ADC, LCD and CAMERA are all available. What's more, OS uClinux is supported very well.

High-performance, fast real-time response, low-power
SoM deliveries 3020 CoreMark/1284 DMIPS @ 528 MHz
512 KB on-chip RAM, fastest real-time response with latency as low as 20ns


Powerful scalability

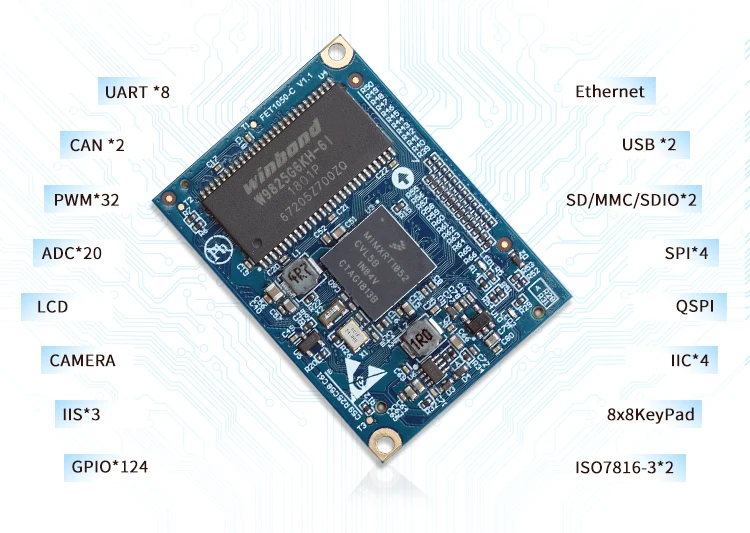

All functional pins are available on the SoM with GPIO up to 124 pins;
LCD, camera, USB, UART, CAN, Ethernet and PWM are all native interfaces supported by this SoM
Multimedia performance
LCD interface with RGB888 is supported to 1366* 768 resolution and 2D GPU;
emWin, parallel camera interface and three IIS are all supported in MCU mode
Native data encryption
Various functional communication interfaces
Eight UART up to 5Mbps;
One 10/100M Ethernet controller with support for 1wip;
Two CAN 2.0 modules, Twenty 12-bit ADC;
Thirty two PWMs support for quadrature decoder and motor control
MCU system is supported with Keil IAR and ARM-GCC tools, meanwhile, Amazon FreeRTOS, SDK, ARM mbed, online development tools and other related global ARM system are supported for development.
Ubuntu and GCC are supported for development work on MPU
Compact size
The SoM dimensions are only 31mm* 43mm with designing of anti reverse board to board connectors, which is not only convenient for users to do testing and mass production but also easy for assembling



Industry/ Application


SoM FET1052-C Basic Information
 CPU i.MX RT1052 Power Input 5V
 Architecture Cortex-M7 Dimensions 31mm* 43mm
 Frequency 528MHz Craftwork thickness 1.6mm, 4-layer EING PCB
 RAM SRAM: 512KB, SDRAM: 16MB/ 32MB Connector 2* 80-pin, pitch of 0.8mm
 Flash QSPI NorFlash: 4MB/ 16MB Working Temp  -40℃ to +85℃


SoM FET1052-C Hardware Features
 LCD1 upto RGB888, resolution up to 1366* 768*(WXGA), 480*x 272 and 800* 480 are available
 Camera1 8-bit DVP, up to 5.0Mp
 SD/ MMC/ SDIO≤2 SD card or SDIO card with 1-bit or 4-bit mode
 USB2 1x USB2.0 OTG(up to 480Mbps), 1x USB2.0 host, integrated with HS USB Phy
 SAI≤3 up to 3x IIS audio
 SPDIF1 Sony/ Philips digital audio interface
 UART≤8 each up to 5.0Mbps
 SPI≤4 full duplex enhanced sync. serial interface, up to 52Mbit/s, it could be configured to host/ device mode, four chip selections are available
 Ethernet≤1 10M/ 100Mbps
 Keypadsupported 8* 8
 CAN≤2 CAN2.0B
 ADC≤20 2x 12-bit ADC, up to 20 input channels
 SEMC BUS1 16-bit parallel bus


OK1052-C Carrier Board Features
 LCD1 RGB565, resolution up to 1366* 768*(WXGA)
 Camera1 8-bit DVP, up to 5.0Mp
 Audio1 1x MIC, 1x Phone
 USB Host1 USB2.0(up to 480Mbps)
 USB OTG1 standard micro USB connector, USB2.0 OTG(up to 480Mbps)
 Ethernet1 10M/ 100Mbps, RJ-45
 RTC1 RX8010SJ chip, CR1220
 EEPROM1 24C02 chip with capability of 256 bytes
 TF card1 compatible of MICRO SD, SDHC
 LED1 users indicator
 POR_BUTTON1 reset key
 ON/ OFF1 keep pressing it to power on or power off the board
 BOOT1 DIP switch for booting mode selection, presently, only TF card mode and QSPI NOR Flash mode are supported
 PWM1 for LCD backlight adjusting
 ADC5 4x ADC for resistive touching panel, and 1x ADC for adjustable resistor
 IIC1 for mounting of touching, camera, WM8960, EEPROM, RTC, IIC converted to 4-wired touching chip
 CAN1 CAN2.0
 SPI1 pin connectors (10-pin) with pitch of 2.0mm
 UART1 3 wired UART, 3.3V, up to 5.0Mbps, 10-pin header with pitch of 2.54mm
 IIS1 for WM8960
 Debug1 RS232, DB9 connector
 SWD1 debug port, 8-pin hearder with pitch of 2.54mm
 Resistive touching1 the carrier board compative the original touch and TSC2007 touching chip, TSC2007 is the default configuration
 Keypad1 4* 4 metrix keypad port by 8-pin header with pitch of 2.54mm

Overview of OK1052-C

MCU Demos
 GPT lpi2c: (RTC, EEPROM)
 Wdog Bee
 Rtwdog Sai
 Ewm Lpspi
 Dcp Enet
 Snvs Flexspi
 Src Sdcard
 Trng Sdcard_fatfs
 Cache Edma
 Flexcan Tsc
 GPIO: LED shinning Semc
 ADC CSI: CMOS camera sensor
 Adc_etc Elcdif
 Cmp PXP
 Qtmr Emwin
 Lpuart(UART2) Flexram
